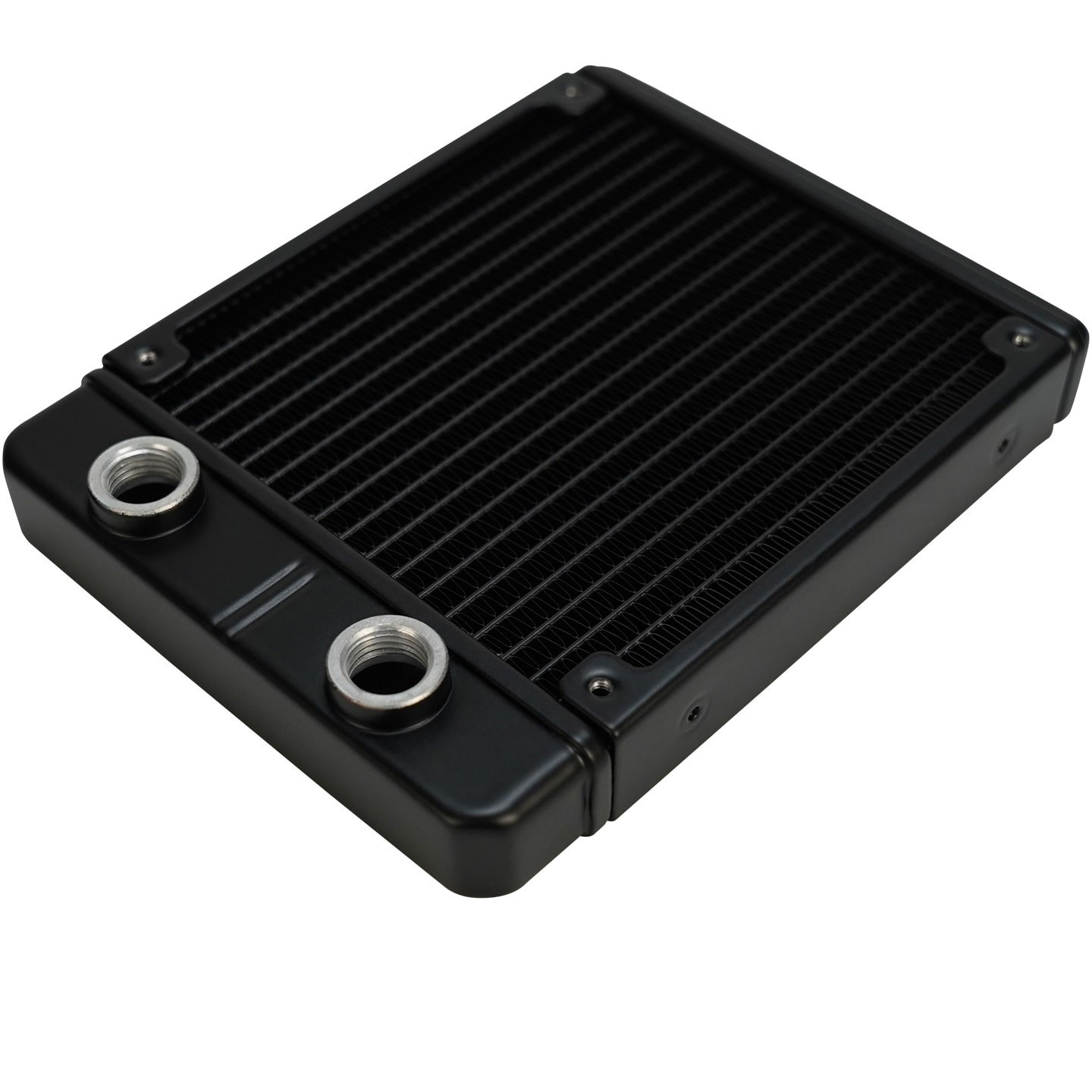

120mm Ultra-Thin Aluminum Radiator

Slim 22.5mm Profile — G1/4 Thread — 17 Flat Channels

Fits Where Others Can't. Cools What Channels20 FPI
High-Density FinsG1/4
Universal Ports120mm
Single FanThe Slimmest Way to Water-Cool a Tight BuildAt just22.5mm thick, this aluminum radiator fits in spaces where standard 27-30mm rads simply won't go. Perfect forSFF / ITX cases, slim chassis, and secondary radiatorsin bigger builds.Why You'll Love It📏Only 22.5mm Thin — SFF Ready

One of the slimmest radiators available. Fits tight ITX cases, slim server builds, and space-constrained chassis where every millimeter counts.

💧17 Flat Water Channels — Max Contact in Min Thickness

Flat channel design packs maximum fin-to-water contact into the ultra-slim body. Even coolant distribution, no dead zones.

🧮20 FPI High-Density Fins — Efficient Heat Transfer

20 fins per inch moves heat out fast — even with low-RPM quiet fans.

🔧Universal G1/4 Thread — Works With Your Fittings

Standard G1/4 (2-point) ports, flow direction doesn't matter. Compatible with all major barb, compression and quick-release fittings.

⚖Pure Aluminum — Light & Corrosion-Resistant

Baking-paint finished aluminum with oxidation resistance. Light enough for portable builds and easy mounting.

⚠ Before You Install — Read This1. Screw length — critical:Screws must not extend more than5mminto the radiator mounting holes. Longer screws willpierce the internal water channels and cause leaks — NOT covered by warranty. Factory screws are matched for standard 25mm-thick fans (8x 6-32 x 31 imperial screws).2. Soft fins are normal:Fins are thin 0.2mm aluminum. Slight fin bending during shipping is normal andnot a quality defect— gently straighten with tweezers.3. Pressure:Recommended long-term operating pressure below1 bar.Buy With Confidence🏭Source Factory
Direct from of certifications✅Strict QC
4.9-rated service

Building SFF? This thin radiator is built for you.

Source Factory | Pure Aluminum | RoHS | Patented | Strict QC
