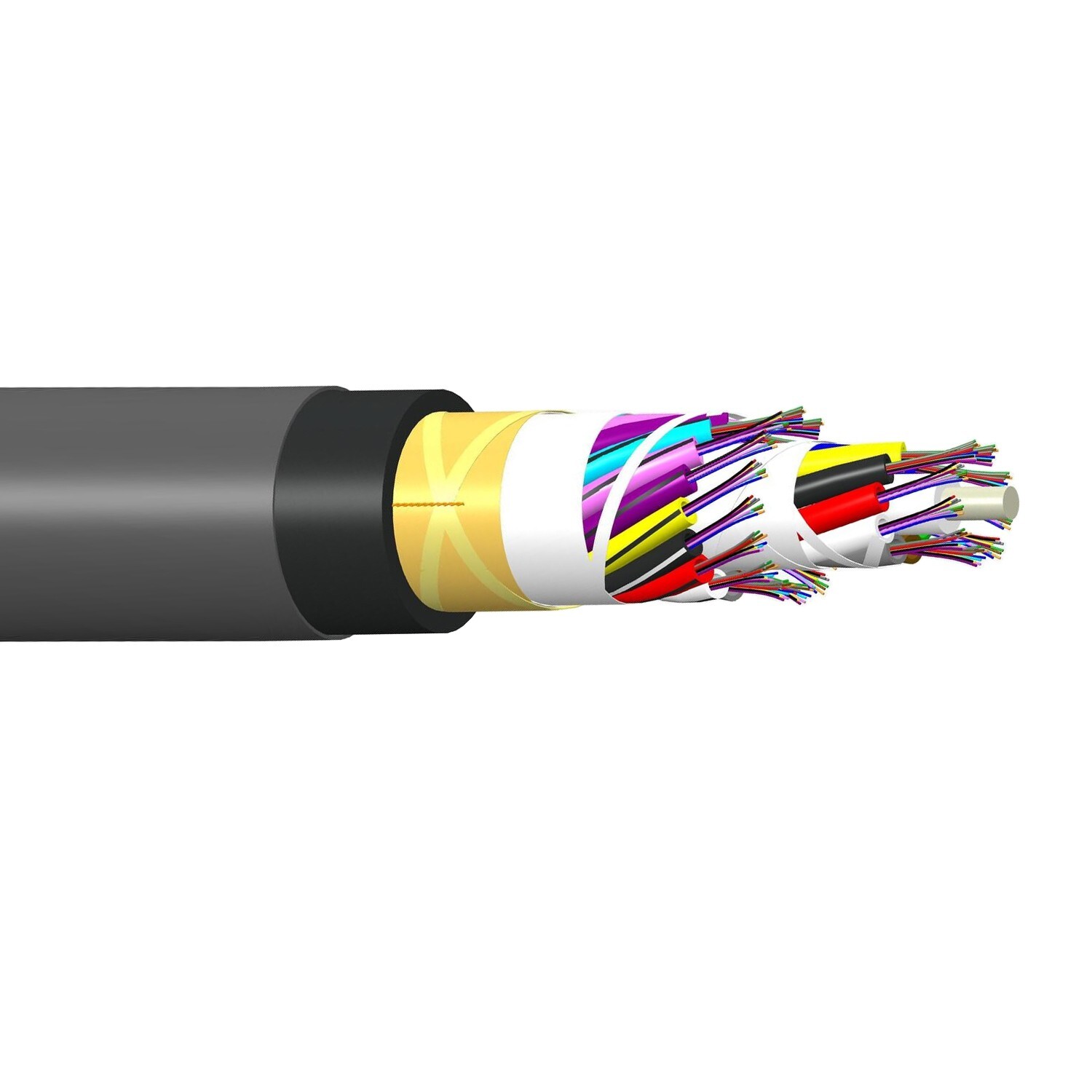

100' 8107971/DB 12 Fiber Riser Rated Singlemode Gel-Free Fiber Optic Cable Click Thumbnails to EnlargeDESCRIPTION
• 8107971/DB 12 Fiber indoor/outdoor cable, LightScope ZWP, Single Jacket All-Dielectric, Riser Rated, 12 fiber, Gel-Free, Stranded Loose Tube, Singlemode G.652.D and G.657.A1, Meters jacket marking, Black jacket color.
MECHANICAL SPECIFICATIONS
• Minimum Bend Radius, Loaded: 6.811 (inches)
• Minimum Bend Radius, Unloaded: 4.528 (inches)
• Tensile Load, Long Term, Maximum: 179.847 (lbf)
• Tensile Load, Short Term, Maximum: 606.984 (lbf)
• Compression: 125.623 (lb/in)
• Compression Test Method: FOTP-41 | IEC 60794-1 E3
• Flex: 25 cycles
• Flex Test Method: FOTP-104 | IEC 60794-1 E6
• Impact: 2.94 N-m | 26.021 in (lb)
• Impact Test Method: FOTP-25 | IEC 60794-1 E4
• Strain: See long and short term tensile loads
• Strain Test Method: FOTP-33 | IEC 60794-1 E1
• Twist: 10 cycles
• Twist Test Method: FOTP-85 | IEC 60794-1 E7
• Vertical Rise, Maximum: 2,224.41 ft
OPTICAL SPECIFICATIONS
• Fiber Type: G.652.D and G.657.A1 | G.652.D and G.657.A1
ENVIRONMENTAL SPECIFICATIONS
• Installation Temperature: -10°C to +60°C (+14°F to +140°F)
• Operating Temperature: -40°C to +70 °C (-40°F to +158°F)
• Storage Temperature: -40°C to +75°C (-40°F to +167°F)
• Cable Qualification Standards: ANSI/ICEA S-104-696 | EN 187105 | Telcordia GR-409
• Environmental Space: Riser
• Flame Test Listing: NEC OFNR (ETL) and c(ETL)
• Flame Test Method: UL 1666
• Jacket UV Resistance: UV stabilized
• Water Penetration: 24 h
• Water Penetration Test Method: FOTP-82 | IEC 60794-1 F5
ENVIRONMENTAL TEST SPECIFICATIONS
• Cable Freeze: -2°C | 28.4°F
• Cable Freeze Test Method: FOTP-98 | IEC 60794-1 F15
• Heat Age: -40°C to +85°C (-40°F to +185°F)
• Heat Age Test Method: IEC 60794-1 F9
• Low High Bend: -30°C to +60°C (-22°F to +140°F)
• Low High Bend Test Method: FOTP-37 | IEC 60794-1 E11
• Temperature Cycle: -40°C to +70°C (-40°F to +158°F)
• Temperature Cycle Test Method: FOTP-3 | IEC 60794-1 F1
REGULATORY COMPLIANCE/CERTIFICATIONS
• ISO 9001:2015 (Designed, manufactured and/or distributed under this quality management system)
PRODUCT SPECIFICATIONSFiber Count 12Cable Type Stranded Loose TubeConstruction Type Non-armoredSubunit Type Gel-freeFiller, Quantity 4Jacket Color BlackSubunit, Quantity 1Fibers per Subunit, Quantity 12Weight (Lbs/1000ft) 80Shipping
