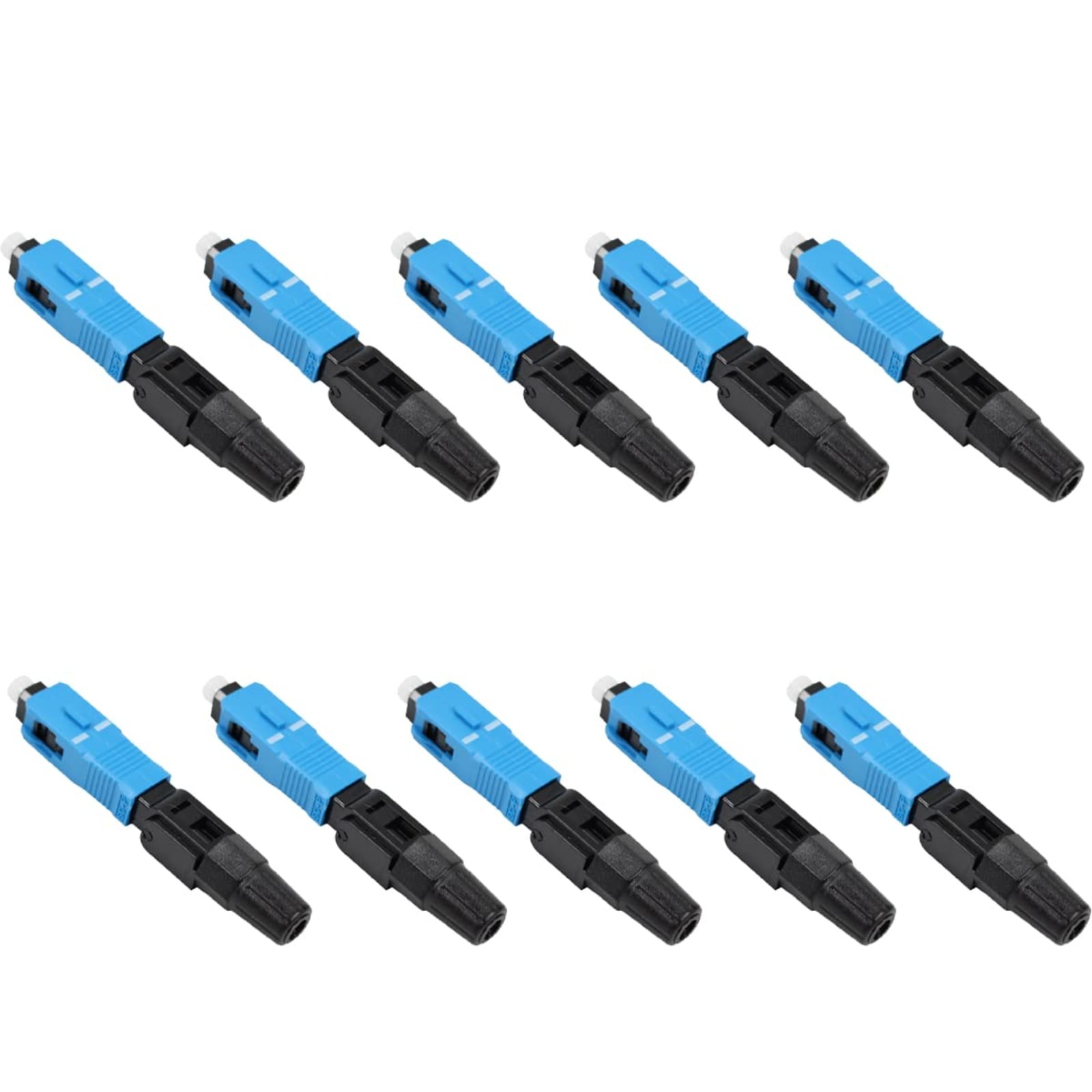

10 Pack SC/UPC Fiber Optic Quick Connectors Single Mode 9/125 for FTTH 2.0x3.0mm Description:

The optical fiber quick connector is an effective tool for realizing the rapid termination of the optical fiber with simple connection tool.

Description:
Connector Type: SC/UPC, Use embedded optical fiber structure
Material: Plastic
Color: Blue+Black
Insertion Loss: ≤ 0.3dB
Return Loss: ≥ 50dB
Operating Temperature: -40 ~ + 75°C
Fiber:2.0 * 3.0 mm Bow-type drop cables

Features:
Low insertion loss and high return loss.
High reliability, and save maintenance cost.
Pre-embedded fiber is polished in high quality.
Can be reusable with easy disassembly and assembly.
Can work stably in harsh environment, like severe coldness and dust, high temperature, high humidity, etc.
Few special installation tools required, installation is simple and fast, with less than 30 seconds averagely.
low technical requirements for the operators.

Package Content:
1 x10 pcs Embedded quick fiber connector

Features:

• PRODUCT ATTRIBUTES: The fiber connector insertion Loss: Not more than 0.3dB. Return Loss: Not less than 50dB. Apply to 2.0x3.0mm butterfly cable.Temperature change rate:less than 0.5dB (-40 to +75℃).
• PROFESSIONAL DESIGN: Low insertion loss.Frame, connector body, dustproof cap.
• FEATURES: Good repeatability, high return loss, stable and reliable performance, high installation quality, high success rate and high reliability.
• QUICK INSTALLATION: The optical fiber fast connector is an effective tool for realizing the rapid termination of the optical fiber, can be connected through some simple connection tools.
• WIDELY APPLICATIONS: Widely Used for optical distribution frame (ODF), FTTH, CATV, optical-fiber local area network, optical fiber instrument.
