10 Inch Rack Mount 1.5U for the Acer Veriton GN100

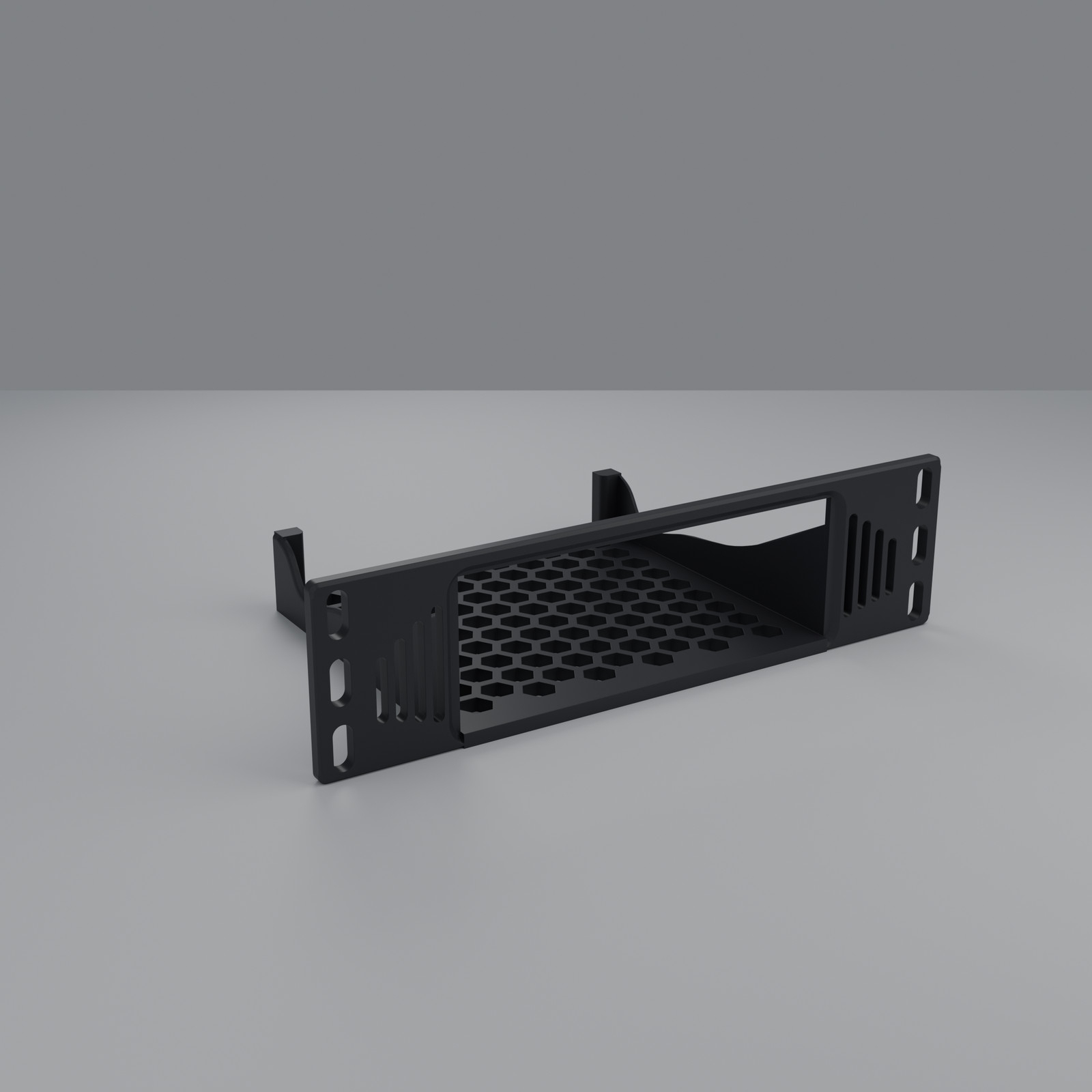

A 1.5U tray that seats the Acer Veriton GN100 AI Mini Workstation in a 10 inch mini rack, printed to order in matte black PETG. The system slides in from the front, through the window, until it touches the rear stop, and sits about 13 mm proud of the faceplate. Its ports and its power button are all on the back panel and the rear of the tray is open, so every cable and the button stay in reach. No adhesive, no modification to the system.
Designed From The Published Specification
- Fits: Acer Veriton GN100 (NVIDIA GB10), 150 x 150 x 50.5 mm (W x D x H) per Acer's specification.
- Opening 152 x 53.5 mm over a flush floor: 1 mm of side clearance and 3 mm above the system.
- Same tray as our NVIDIA DGX Spark mount: these GB10 systems share the 150 x 150 mm footprint.
- Faceplate 254 mm wide, the standard 10 inch width, on EIA-310 10 inch hole spacing; 1.5U (66.7 mm) tall. Two trays stack in 3U for a pair of GN100s.
Build
- Single piece.
- Vented rhythm-slot face and an open honeycomb floor.
- Fits any 10 inch / 254 mm mini rack with standard square or round holes. The mounting slots take #10-32, M5 or M4 rack screws.
- Part measures 254 x 145 x 66.7 mm. Matte black PETG.
Printed To Order
Each unit is printed fresh in our shop on calibrated printers and inspected before it ships. Lead time is up to 4 business days. Minor layer lines are normal for FDM 3D printing and part of the finish.
Mount only. System and power adapter not included. The rack and the device shown in the photos are not included; they appear for scale and fitment only.
Not an official Acer product; Acer and Veriton are trademarks of their owner.
