Please note before purchasing: refurbished 3D scanners do not have reflective markers sheets and Calibration board.Creality Raptor Pro
Best Partner for Auto Custom
22 Cross +7 Parallel Blue Laser Lines + NIR
Volumetric Accuracy: 0.02mm+0.08mm/m
Objects Between 5-4000mm
Key Features
22 Cross Laser Lines
7 Parallel Laser Lines
NIR Structured Light
Volumetric Accuracy: 0.02mm+0.08mm/m
Objects between 0.2-157'' / 5-4000mm
Scan Black/Metal Objects without Sprays
High Scanning Speed Up to 60fps, 660,000 points/s
NIR Scanning up to 30fps
24-Bit Full-Color Scanning
22+7 Bule Laser LinesTwo Blue Light Modes with Seamless Switching
22 cross laser lines for scanning medium to large objects quickly, 7 parallel laser lines for partial HD scanning, with dual modes that can be freely switched, achieving both scanning efficiency and precision.
22 Cross Laser LinesScan Medium to Large Objects Quickly
Provide comprehensive coverage for medium/large objects, minimizing the need for multiple passes or redundant scans.
7 Laser Lines for Partial HD Scanning
Each laser line is as fine as 0.1mm, capturing sharper edges and richer details.
High-quality 660,000 points/s, Fast Scan Speed
Process up to 660,000 points per second, making it ideal for quickly scanning medium to large objects.
Volumetric Accuracy
0.02mm+0.08mm/m
Reliable Precision and Accurate Detail
High Scanning Speed for Smooth ScanningLaser Line Scanning
Scan frame rate can reach up to 60fps
Infrared Structured Light Scanning
Scan frame rate can reach up to 30fps
Objects Between
0.2-157''/ 5-4000mm
Combining blue laser lines with infrared structured light, Raptor Pro can scan objects ranging in size from 5*5*5 mm³-4000*4000*4000 mm³. Effortlessly scanning automobile components, engineering parts, molds, human bodies and more.
Laser Line Scanning
Minimum scan size: 5*5*5 mm³
Maximum scan size: 4000*4000*4000 mm³.
NIR Structured Light Scanning
Scanning objects ranging from Structured Light ScanningMarkerless Scanning
Raptor Pro utilizes speckle matching 3D imaging, No markers needed for feature-rich workpieces. Objects can be scan quickly and directly.
Unique Face & Body Algorithm
Face & body mode is equipped with a unique face mapping algorithm that captures more details and easily scan hair, a human body scan only needs as quick as 2 minutes.
Wider Applications, Better Performance
Outdoor Scanning
Blue laser with strong environmental resistance, delivers outstanding performance even in outdoor environments.
7-line laser: <50000 lux 22 cross lines: <100000 lux
Anti-shaking
Equipped with One-Shot 3D imaging technology, Raptor Pro is naturally stabilized and less likely to tracking loss. Fast backtracking speed ensures smoother handheld scanning.
Peaceful Scanning with LED Lights
Blue light provides supplementary light for laser line scanning.
White light is used to enhance the brightness of color textures.
Scan Black/Metal Objects Without Sprays
With strong material adaptability, you can scan black/metal objects without sprays.

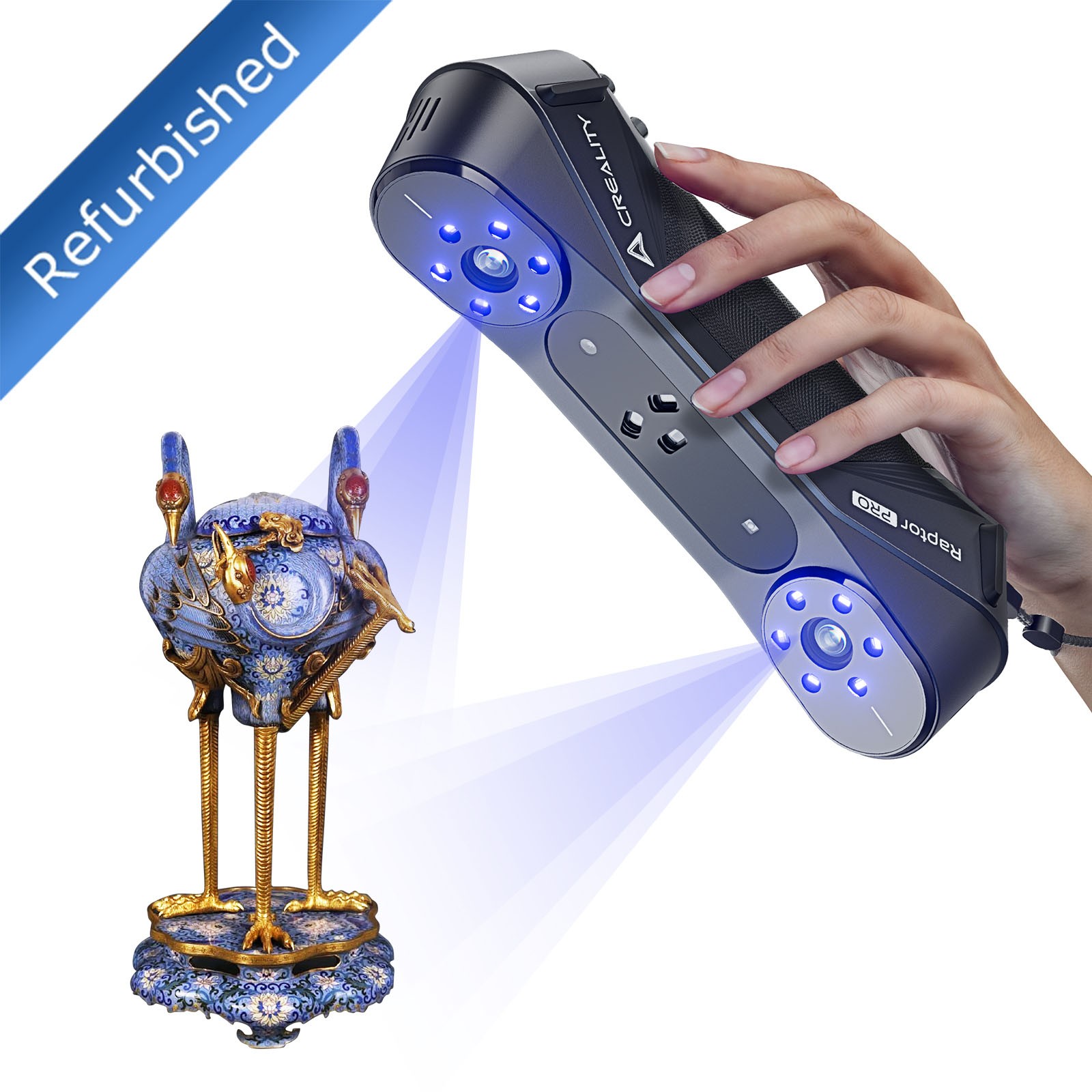

Creality Raptor Pro
High Performance Structure
24-bit Full-Color Scanning
Lightweight and Portable
Supports Expandable Scan Bridge
High Performance Structure, Details Revealed
Advanced temperature compensation algorithm, it can improve temperature stability and ensure accuracy.
2.3 Million Pixel 3D Imaging Camera
Low distortion lens, less than 5‰
φ20mm large depth of field lens
9-elements glass lens
Metal lens barrel and holder
24-bit Full-Color Scanning in All Modes
With a High resolution RGB camera, it supports 24-Bit full-color texture capturing in all modes.
Lightweight and Portable
Weighs only 405g
Ring indicator light
Paired with buttons, getting straight forward operatiion
Anti-slip sleeve and detachable lanyard
Supports Expandable Scan Bridge
Allowing flexible switching between wired and wireless scanning modes for a more liberating scanning experience.
*Scan Bridge is available for separate purchase if needed.
New Intuitive Software with Powerful Features
CrealityScan is a professional 3D scanning software designed for exceptional user-friendliness and robust image and point cloud processing capabilities. With step-by-step tutorials, one-click model processing, and advanced editing features, it simplifies your scanning journey from start to finish.
50% Faster Processing Time
Partial HD Scanning
Global Marker Scanning
Point Cloud Editing
Face and Body Mode
Easy Calibration
Seamless Integration to Inspection, Design, 3D Printing Softwares
The scan data can be imported into mainstream 3D inspection and design software programs, such as Geomagic Control X, Geomagic Design X, and Verisurf Inspect with one click, improving the workflow efficiency.
Geomagic Control X
Creality Print
#Buying Guide：
Compared to Raptor, Raptor Pro is equipped with extra 22 cross blue laser lines for scanning. Its scanning speed of 660,000 points/s is 1.6 times that of Raptor; the depth of field range is 1.7 times that of Raptor, and the width is twice that of Raptor. This significantly improves scanning efficiency without compromising TechnologyLaserFeaturesColor ScanningModelRaptor Pro#1 Scanning Mode7 blue parallel laser lines#1 AccuracyUp to 0.02mm#1 Volumetric Accuracy0.02+0.08mm/m#1 Scanning rate420,000 measurements/s#1 Single Capture Range270mmx170mm@300mm#1 Working distance160mm-400mm#1 Outdoor ScanningBelow 50,000 lux#2 Scanning Mode22 cross blue laser lines#2 AccuracyUp to 0.02mm#2 Volumetric Accuracy0.02+0.08mm/m#2 Scanning rate660,000 measurements/s#2 Single Capture Range270mm x 170mm@300mm 341mm x 232mm@400mm 397mm x 290mm@500mm#2 Working distance200-550mm#2 Outdoor ScanningBelow 10,000 lux#3 Scanning ModeNIR(infrared binocular structured light)#3 AccuracyUp to 0.075mm#3 Volumetric Accuracy0.075mm+0.1mm/m#3 Scanning rate3,580,000 measurements/s#3 Single Capture Range630mm×550mm@1000mm#3 Working distance170mm-1000mm#3 Outdoor ScanningBelow 30,000
