Battery type: Li-Polymer
Voltage: 11.4V
Capacity:47Wh
Cell:3 Cells
recharge cycles： 500
Operation time: Around 1.5-3hoursCompatible Part Number:
NGGX5 954DF JY8DF XWDK1 451-BBUM 451-BBUJ XKWC7 451-BBUJ 53VJ6 451-BBUL Compatible Models:
For Dell Latitude 12 E5270 5270 Series Notebook,
For Dell Latitude 14 E5470 5470 Series Notebook,
For Dell Latitude 15 E5570 5570 Series Notebook,
For Dell Precision 15-3510 (P48F001) Series Notebook. -There are three different type batteries:

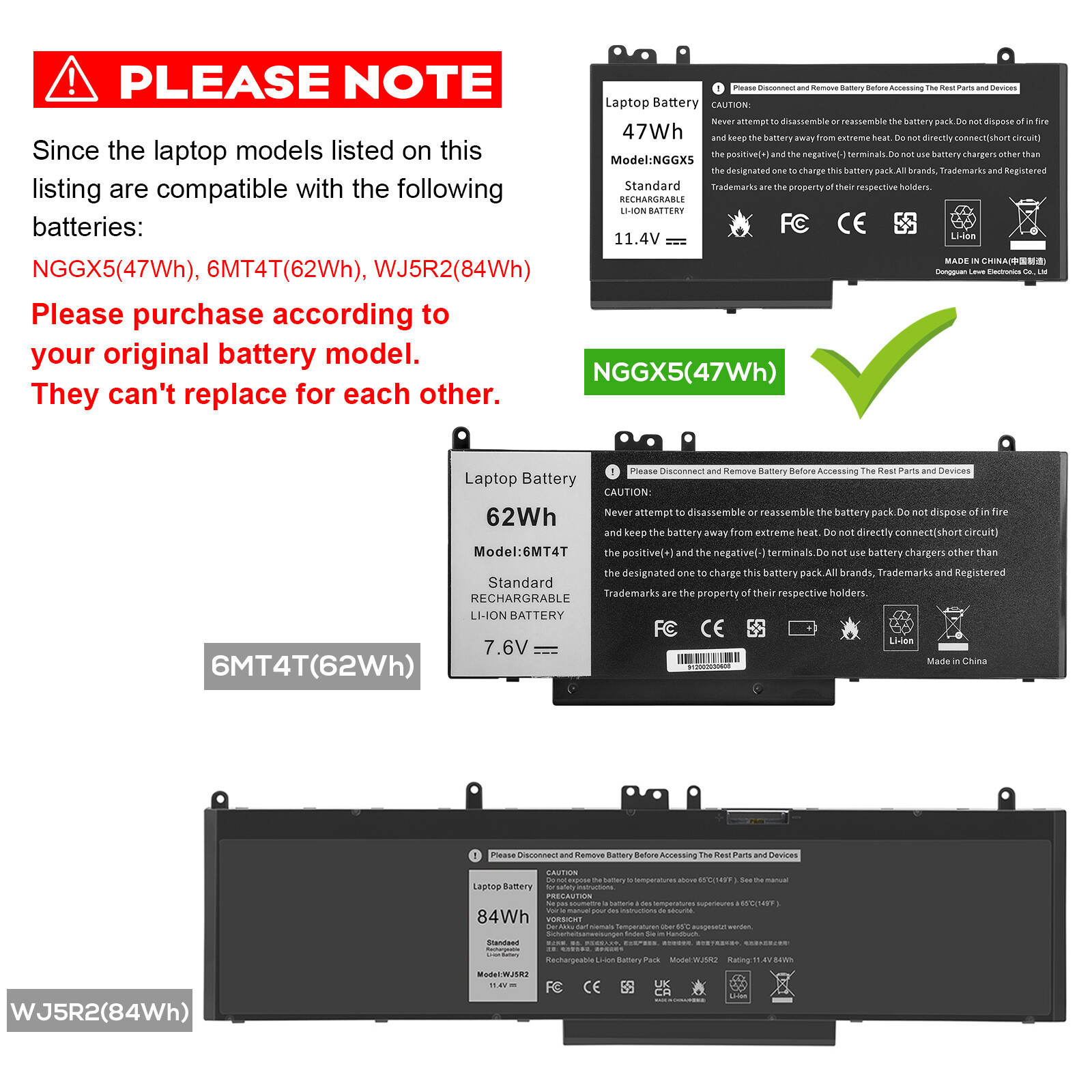

47 Wh (3–Cell) / 84 Wh (6–cell) / 62 Wh (4–cell), can work for Dell Latitude E5470 5470 E5570 5570 E5270 5270 laptops, but they cannot be replaced, please make sure that your original battery is 47Wh 11.4V. -This NGGX5 W9FNJ battery is only an universal replacement of 47Wh 11.4V battery, cannot replace with part WJ5R2/6MT4T/G5M10/RYXXH/R0TMP, please remove your laptop battery cover and find out the detail power and voltage of your original battery. How to confirm that the battery is suitable for your laptop?
Method 1: Use System Information to find your laptop model
Step 1: Press Windows + R to open Run window.
Step 2: Input "msinfo32" in the empty box and click OK to open System Information.
Step 3: Keep in the System Summary section, and you will find the System Model item in the right pane.
Method 2: Remove Battery from Laptop to find your laptop battery part number
Step 1: Switch off the laptop and unplug the power cable in case of electric shock
Step 2: Remove the back panel with the screwdriver. You should to this with care avoiding any harm to the laptop components.
Step 3: Disconnect the cable connected to the battery and then take out the battery. After that, you can check the specifications of your battery.
Install A New Battery:- You need to turn off your laptop and disconnect the power.
- Disconnect the connection between the old battery and the motherboard to avoid unnecessary damage caused by disassembling the battery. Then unscrew the old battery screws one by one and carefully save each screw.
- Remove the old battery, carefully install the new battery on the battery case, screw in the screw, and connect the wiring of the new battery.
- If you don't understand the above steps, you can search for the video about laptop battery installation on YouTube. Maybe it will help you
Laptop Battery Instructions:- Discharge the new battery to 10% (not 0%), then charge(100%) and cycle 3-5 times to wake up the new battery.
- It can calibrate the state of the battery by performing a complete and effective charging and discharging of the battery once a month.
- Charge it to around 50% when you store it long term.
- Do not keep your battery below 5% or deep discharge state (long time 0%), may turn on battery protection and cause the battery to fail to charge.
- Please feel welcomed to notify us of any inconvenience or fault in our battery.
The following are troubleshooting methods:- Turn off the laptop.
- Unplug AC power.
- Remove the battery.
- Replace AC power.
- Turn on laptop,allow OS to boot.
- Once logged into the machine, perform a normal shut down.
- Unplug AC power.
- Replace battery.
