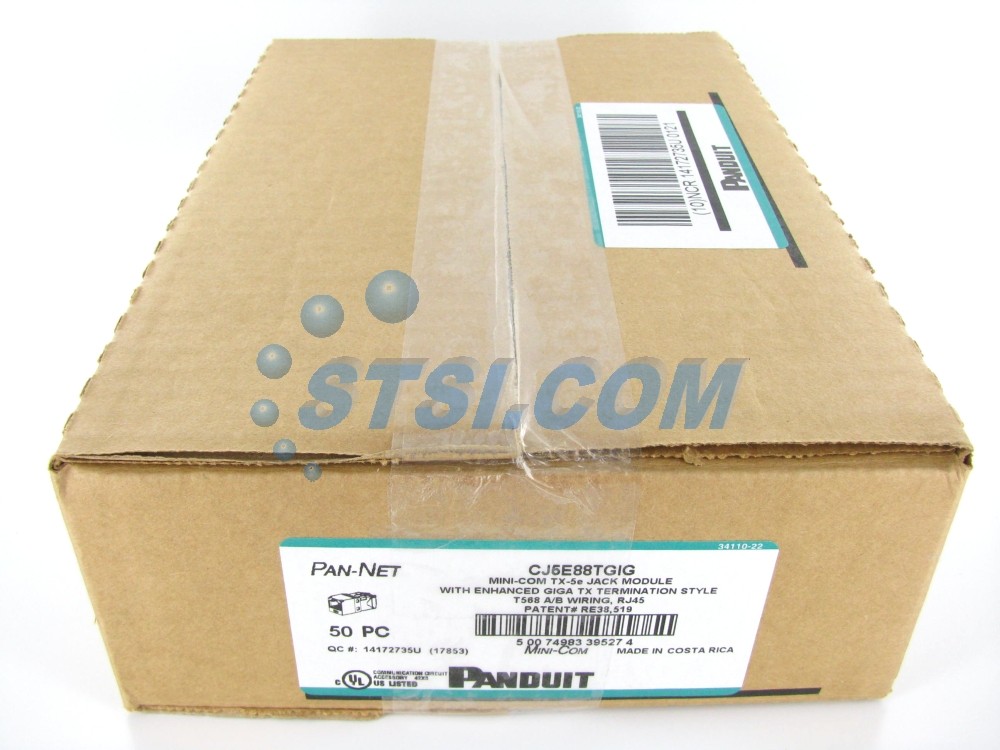

Panduit CJ5E88TGIG Mini-Com Cat5e TX-5e Modular Jack, Gray, Box of 50
The green Panduit EGJT-1 tool is used to terminate this jack.
Description:
Panduit Mini-Com® UTP RJ45 Cat 5e TG Jack Module, Int'l Gray, Box of 50
Part # CJ5E88TGIGThe Mini-Com® Cat 5e UTP RJ45 TG-Style Jack Module is designed to terminate 4-pair, 22-26 AWG twisted pair cable. Each module is 100% factory tested for continuity. Contacts are plated with 50 microinches of gold for superior performance. Jack modules are compatible with Mini-Com Modular Patch Panels and Faceplates. The jack module is International Gray.
Features:
- Product Type Jack Module
- Performance Level Category 5e
- Connector Type Jack Module - Standard
- Termination Style TG Style
- Body Material Polycarbonate
- Contact Material Plated Phosphor Bronze
- Module Type Mini-Com®
- Wiring Scheme T568A/T568B
- Shield Type Unshielded (UTP)
- Sub Brand Pan-Net®
- Resistance Properties Heat-Resistant
- Color International Gray
- Standards Met Exceeds Channel and Component Requirements of ANSI/TIA-568.2-D and ISO 11801 Standards for the Respective Category, Meets IEC 60603-7, Supports 2500 Connection Cycles with IEEE 802.3af / 802.3at and 802.3bt Type 3 and Type 4, UL 1863 and UL 2043 and RoHS Compliancy Status Compliant
- Part Description Category 5e, RJ45, 8-position, 8-wire universal jack module.
- Product Type UTP Jack Module
- Color Gray
- CE Compliant No
- No. of Module Spaces 1
- Performance Level Category 5e/Class D
- Pricing Description Mini-Com Module, Cat 5e, UTP, 8 pos 8 wire, TG Style, Gray
- Wiring Scheme T568A/T568B
