DESCRIPTION
7/10.1 Inch DVI Display Module For Raspberry Pi Pico, IPS Panel, 1024×600 Pixel, DVI Interface Communication7/10.1 InchDVI Display ModuleFor Pico
Comes with Raspberry Pi Pico C/C++ demo and resources
- Size7/10.1\"
- Resolution1024×600
- Display PanelIPS
- Viewing Angle170°
- InterfaceDVI
- OSD MenuBrightness/Contrast
Features At A Glance
- Adopts IPS panel, 1024×600 resolution*, with 170° viewing angle
- Adopts DVI interface for higher communication speed
- Based on the Raspberry Pi Pico with onboard 40PIN header
- Built in OSD menu for brightness/contrast adjustment
- Available in 7inch and 10.1inch display sizes
- Suitable for advertisement picture display and other application scenarios
- Comes with online development resources and manual (examples for Raspberry Pi Pico C/C++)
*Due to the memory limitation of RP2040, the picture resolution (Max) will be 400×240 if the color format is RGB565.
Version Options
7inch
10.1inch: 222.72×125.28mmPIXEL SIZE7inch: 0.1506×0.1432mm
10.1inch: 0.2175×0.2088mm
Raspberry Pi Pico Header Compatibility
Onboard Female Pin Header For Direct Attaching To Raspberry Pi Pico
Connect to Raspberry Pi Pico WH
Connect to RP2040-Plus
for reference only, the Pico and RP2040-Plus are NOT included
Pin Definition
Interface Introduction
Product Show
Outline DimensionsResources & ServicesWiki:[link removed by ]Selection guidePART NUMBERTYPEDISPLAY COLORPIXELSDISPLAY SIZE (MM)BUSDRIVERDIMENSIONS CONTENT
Weight:0.271 kg
PICO-DVI-7inch

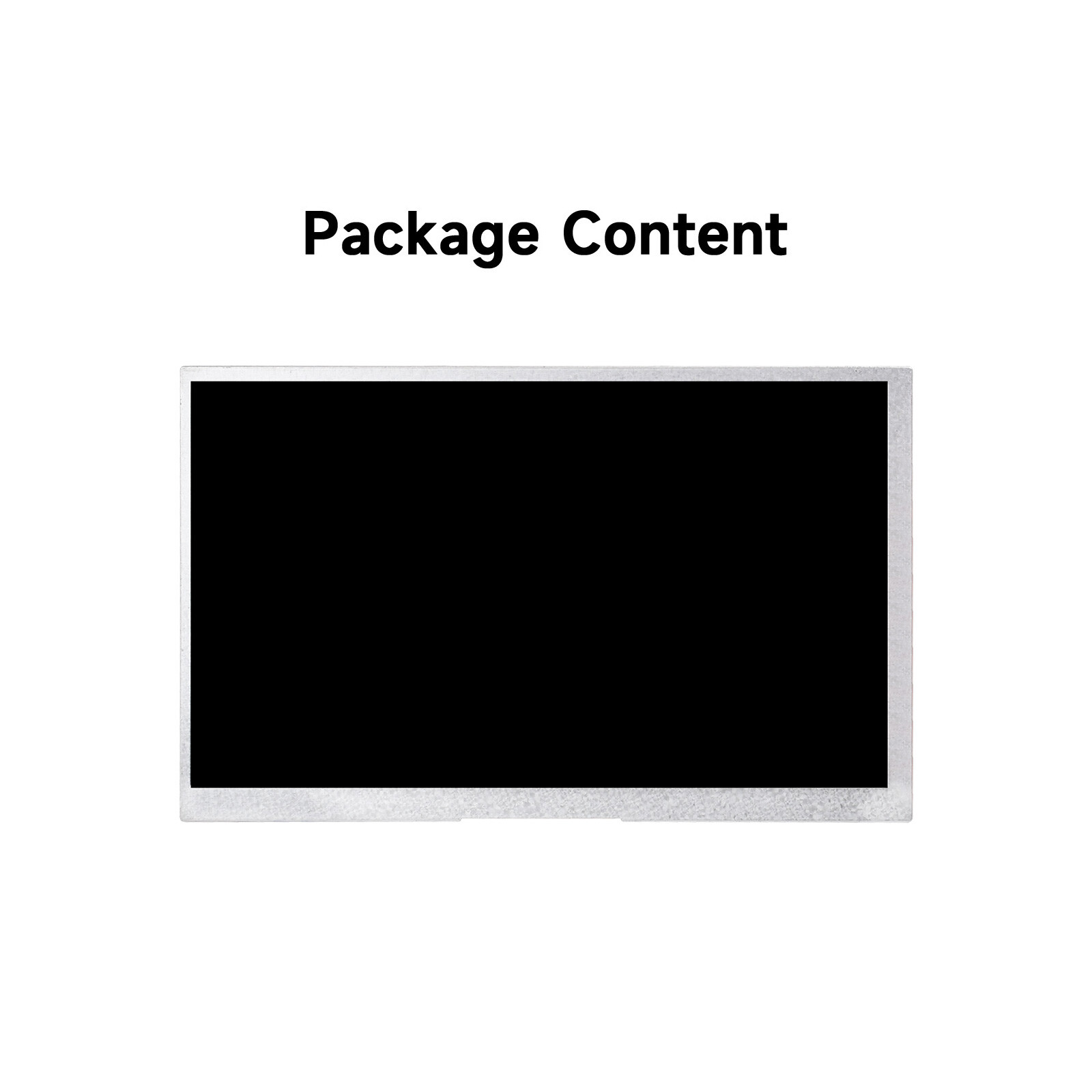

PICO-DVI-7inch x1
PICO-DVI-10.1inch
PICO-DVI-10.1inch x1
