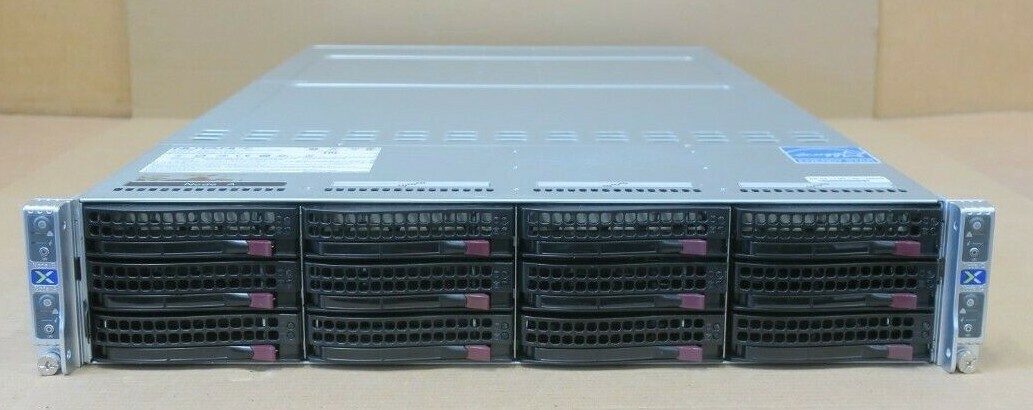

Supermicro SuperServer 6026TT-HTRF 12-Bay 4x X8DTT-HF+ Node CTO 2U Rack Server
Supermicro Chassis Model: 6026TT-HTRFSupermicro Node Motherboard P/N: X8DTT-HF+
In Good Condition, Full Working OrderTested2 Years Warranty
CTO - Configure To OrderNo CPU, No Memory included both of which are required in order to use, please send a message for a quote for them if required
Includes:

• 1 x Supermicro SuperServer 6026TT-HTRF 12-Bay 4-Node CTO 2U Rack x 12-Bay 3.5\" SAS/SATA Hard Drive Bays - Backplane BPN-SAS827B rev 1.01
• 2 x 1400W Power Supplies - PWS-1K41P-1R
• 4 x Super X8DTT-HF+ rev 2.00 Nodes Each With:
• Supports up to two Intel 64-bit Xeon processor(s) of the same type below:
• Intel Xeon Processor X5600/E5600/L5600/X5500/E5500/L5500 Series
• Supports up to 12 x DDR3 DIMMS
• 2 x Heatsinks Included - SNK-P0037P
• 1 x Supermicro 4-Port Backplane Adapter Card - BPN-ADP-4SATA rev 1.00
• 1 x Supermicro PCIE x16 Right Side 1U Riser - RSC-R1U-E16R rev 1.00

Manufacturers Specification:
SYS-6026TT-HTRF

• SuperServer 6026TT-HTRF (Black)

Motherboard
4x Super X8DTT-HF+Processor/CacheCPU

• Dual 1366-pin LGA Sockets
• Supports up to twoIntel® 64-bit Xeon®processor(s) of the same type below:

• Intel® Xeon® Processor X5600/E5600/L5600 Series
  (Westmere) 40W - 95W

• Intel® Xeon® Processor X5500/E5500/L5500 Series
  (Nehalem-EP) 38W - 95W


QPI

• up to 6.4 GT/s

System MemoryMemory Capacity

• 12x 240-pin DIMM slots
• Supports up to 192 GB** 1333 / 1066 / 800MHz DDR3 ECC Registered memory
• Supports up to 48 GB 1333 / 1066 / 800MHz DDR3 ECC / Non ECC Unbuffered memory
• Memory Mirroring supported

Memory Type

• 1333 / 1066 / 800MHz ECC Registered / ECC or Non ECC Unbuffered DDR3 SDRAM 72-bit, 240-pin gold-plated DIMMs

DIMM Sizes

• 1GB, 2GB, 4GB , 8GB** , 16GB**

Memory Voltage

• 1.5 V / 1.35 V

Error Detection

• Corrects single-bit errors
• Detects double-bit errors (using ECC memory)
• Supports Intel® x4 and x8 Single Device Data Correction (SDDC)

On-Board Devices (per Node)Chipset

• Intel® 5500 (Tylersburg) chipset
• ICH10R + IOH-36D

SATA

• Intel ICH10R SATA 3.0Gbps Controller
• RAID 0, 1, 5, 10 support

IPMI

• Support for Intelligent Platform Management Interface v.2.0
• IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
• Nuvoton WPCM450 BMC

Network Controllers

• Dual Intel® 82574L Gigabit Ethernet Controller
• Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output
• 1x Realtek RTL8201N PHY (dedicated IPMI)

Graphics

• Matrox G200eW

Super I/O

• Winbond W83527HG chip

Clock Generator

• 932S421 chip

Input / Output (per Node)Serial ATA

• Six Serial ATA ports
• 3 SATA hard drives supported

LAN

• 2x RJ45 LAN ports
• 1x RJ45 Dedicated IPMI LAN port

USB

• 2 rear + 1 header (2 Ports)
• 4 total USB ports, 2.0 Compliant / 1.1 Compliant

VGA

• 1x VGA Port

Serial Port

• 1 Fast UART 16550 serial port

System BIOS (per Node)BIOS Type

• 32Mb SPI Flash EEPROM with AMI® BIOS

BIOS Features

• Plug and Play (PnP)
• PCI 2.2
• ACPI up to 3.0
• USB Keyboard support

ChassisForm Factor

• 2U Rackmount

Model

• Power On/Off button
• UID button

LEDs

• Power LED (on power button)
• Network activity LED
• System Overheat/fan fail/power fail/ LED
• UID LED (on UID button)

Expansion Slots (per Node)PCI-Express

• 1 (x16) PCI-E ( Low Profile)

Drive Bays (per Node)Hot-swap

• 3x 3.5\" SATA Hot-swap drive bays

Hard drive Backplane2U Hard drive BackplaneSystem CoolingFans

• 4x Cooling Fans

Power Supply1400W high-efficiency (1+1) redundant power supply with PMBusAC Input

• 1100W Output @ 100-140V, 13.5-9.5A, 50-60Hz
• 1400W Output @ 180-240V, 9.5-7.0A, 50-60Hz

DC Output

• 1100W: +12V/92A; +5Vsb/4A
• 1400W: +12V/116A; +5Vsb/4A

With Distributor

• +5V: 30 Amp
• +3.3V: 24 Amp
• -12V: 0.6 Amp

CertificationGold Certified
PC Health MonitoringCPU

• Monitors for CPU Cores,+1.5V, +3.3V, +5V, +12V, +5 Stdby, +3.3 Stdby, VBAT, Memory Voltages.
• CPU Core 6-Phase-switching voltage regulator

FAN

• Total of four 4-pin PWM fans
• 4x fans with tachometer monitoring
• Status monitor for speed control
• Status monitor for on/off control
• Low noise fan speed control

Temperature

• Monitoring for CPU and chassis environment
• CPU thermal trip support
• Thermal Control for 4x Fan Connectors
• PSU I2C temperature sensing logic
• Thermal Monitor 2 (TM2) support
• PECI

LED

• Power Fail / Overheat LED
• Suspend-state Indicator LED
• UID LED

Other Features

• SDDC Support

Operating Environment / ComplianceRoHS

• RoHS Compliant

Environmental Spec.

• Operating Temperature: 10°to 35°C (50°to 95°F)
• Non-operating Temperature: -40°to 70°C (-40°to 158°F)
• Operating Relative Humidity: 8% to 90% (non-condensing)
• Non-operating Relative Humidity: 5 to 95% (non-condensing)

VAT @ 20% INCLUDED IN PRICE - VAT INVOICE PROVIDED£200 excluding VAT
