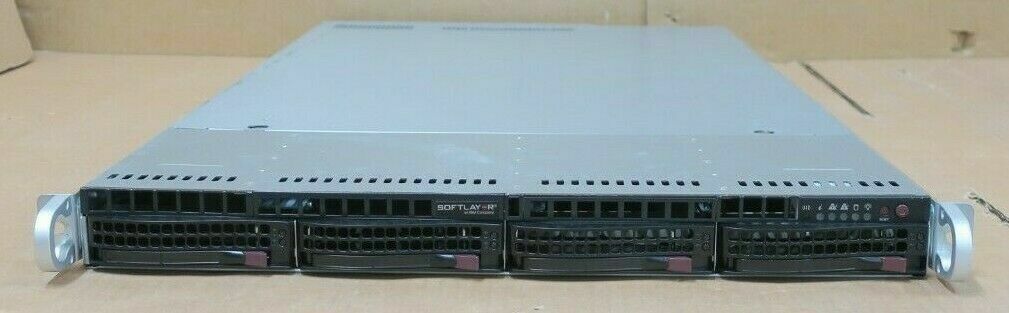

Supermicro CSE-819U X10DRU-i+ 2x E5-V3/V4 4x 3.5" Bay CTO 1U Server No CPU / RAM Chassis Part number:CSE-819U Motherboard Part Number:X10DRU-i+ rev 1.01 Backplane Part Number:SAS815TQ In Good Condition, Full Working Order Tested CTO CONFIGURE-TO-ORDER, NO PROCESSOR, NO MEMORY, NO HARD DRIVES INCLUDED - THESE ARE REQUIRED IN ORDER TO OPERATE - WE CAN QUOTE TO SUPPLY IF REQUIRED Includes: - 2 x V3/V4 Heatsinks
- 24 x DDR4 Memory Slots
- 4 x 3.5" SAS/SATA Hot-Swap Hard Drive Bays With 4 x Empty Caddies
- Onboard SATA 2.0 & 3.0 RAID (RAID 0, 1, 5, 10)
- 1 x Riser RSC-R1UW-E8R
- 1 x Riser RSC-R1UW-2E16
- 1 x1U Ultra Riser based on Intel X540 controller with 4 10Gbase-T ports and 1 internal PCI-E x8 3.0 slotAOC-UR-I4XT
- 1 x 750W Power Supply PWS-751P-1R
Manufacturers Specification: Motherboard Super X10DRU-i+Processor/CacheCPU - Intel® Xeon® processor E5-2600v4†/ v3 family (up to 160W TDP)*
- Dual Socket R3 (LGA 2011)
Cores / Cache - Up to22 Cores†/ Up to55MB†Cache
System Bus Note†BIOS version 2.0 or above is required System MemoryMemory Capacity - 24x 288-pin DDR4 DIMM slots
- Up to 3TB†ECC 3DS LRDIMM, 1.5TB ECC RDIMM/LRDIMM
Memory Type - 2400†/2133/1866/1600MHz ECC DDR4 SDRAM 72-bit
- 2666/2400 ECC DDR4 NVDIMM
DIMM Sizes - RDIMM: 64GB, 32GB, 16GB, 8GB, 4GB
- LRDIMM: 64GB, 32GB
- 3DS LRDIMM: 128GB
- NVDIMM: 16GB
Memory Voltage Error Detection - Corrects single-bit errors
On-Board DevicesChipset SATA - SATA3 (6Gbps) with RAID 0, 1, 5, 10
IPMI - Support for Intelligent Platform Management Interface v.2.0
- IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
- ASPEED AST2400 BMC
Network Connectivity - 4x 10GBase-T ports viaAOC-UR-i4XT
- Intel® X540 10GBase-T
- 1x Realtek RTL8211E PHY (dedicated IPMI)
Graphics Input / OutputSATA LAN - 4x RJ45 10GBase-T ports
- 1x RJ45 Dedicated IPMI LAN port
USB - 5x USB 3.0 ports
(2 rear, 2 onboard header, 1 Type A)
Video Serial Port DOM - 2x SATADOM(Disk on Module) support with embedded power
System BIOSBIOS Type - 128Mb SPI Flash EEPROM with AMI BIOS
BIOS Features - Plug and Play (PnP)
- APM 1.2
- PCI 2.3
- ACPI 1.0 / 2.0 / 3.0 / 4.0
- USB Keyboard support
- SMBIOS 2.7.1
- UEFI 2.3.1
ManagementSoftware - SuperDoctor® 5
- Intel® Node Manager 3.0
- Watch Dog
- NMI
- SUMandSSM
- Optional IPMI 1.5 / 2.0
Power Configurations - ACPI Power Management
- Power-on mode for AC power recovery
ChassisForm Factor Model Width Depth Weight - Net Weight: 26 lbs (11.8 kg)
- Gross Weight: 41 lbs (18.6 kg)
Available Color Front PanelButtons - Power On/Off button
- System Reset button
LEDs - Power LED
- Hard drive activity LED
- 2x Network activity LEDs
- System Overheat LED / Fan fail LED /
UID LED
Expansion SlotsPCI-Express - 2x PCI-E 3.0 x16 slots (Full-height, 10.5" L)
- 2x PCI-E 3.0 x8 slots (Low-profile, 1 internal)
Drive BaysHot-swap - 4x 3.5" Hot-swap drive bays
System CoolingFans - 4x heavy duty fans with optimal fan speed control
- 4x additional fans optional
Air Shroud Power Supply750W Redundant AC-DC Power Supplies, +12V/+12Vsb outputAC Input - 100-127Vac, 50-60Hz
- 200-240Vac, 50-60Hz
+12V - Max: 62.5A & Min: 0A (100Vac-127Vac)
- Max: 62.5A & Min: 0A (200Vac-240Vac)
12V SB Motherboard Specification: Product SKUsMBD-X10DRU-i+ - 17" x 16.8" (43.18cm x 42.67cm)
Processor/CacheCPU - Intel® Xeon® processor E5-2600 v3, Intel® Xeon® processor E5-2600 v4.
- Dual Socket R3 (LGA 2011) supported, CPU TDP support Up to 160W, 1 QPI up to 9.6GT/s
Cores / Cache - Up to 22 cores † / Up to 55MB† cache
Note - † BIOS version 2.0 or above is required
Note - ** Motherboard supports this maximum TDP. Please verify your system can thermally support.
System MemoryMemory Capacity - 1.5TB Registered ECC RDIMM, DDR4-2400MHz; Up to 3TB 3DS ECC LRDIMM, in 24 DIMM slots
Memory Type - 2400/2133/1866/1600MHz ECC DDR4 SDRAM 72-bit
DIMM Sizes - RDIMM: 4GB, 8GB, 16GB, 32GB, 64GB
- LRDIMM: 32GB, 64GB
- 3DS LRDIMM: 128GB
Memory Voltage Error Detection - Corrects single-bit errors
On-Board DevicesChipset SATA - Intel® C612 controller for 10 SATA3 (6 Gbps) ports; RAID 0,1,5,10
AHCI SATA - SATA3 (6Gbps); RAID 0, 1, 5, 10
SCU SATA - SATA3 (6Gbps); RAID 0, 1, 5, 10
IPMI - Support for Intelligent Platform Management Interface v.2.0
- IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
- ASPEED AST2400 BMC
Network Controllers - Networking options provided via Ultra Riser
Graphics Input / OutputSATA LAN USB - 3 USB 3.0 ports (2 rear + 1 Type A)
Video Output Serial Port / Header - 2 COM Ports (1 rear, 1 header)
2 fast UART 16550 serial
TPM Expansion SlotsPCI-E - 1 PCI-E 3.0 x32 Left Riser Slot,
- 1 PCI-E 3.0 x8 Right Riser Slot,
- 1 PCI-E 3.0 x40 Ultra Riser Slot
- See Ultra Riser Compatibility Matrix.
System BIOSBIOS Type - 128Mb SPI Flash EEPROM with AMI BIOS
BIOS Features - Plug and Play (PnP)
- PCI 2.3
- ACPI 1.0 / 2.0 / 3.0 / 4.0
- USB Keyboard support
- SMBIOS 2.7.1
- UEFI 2.3.1
ManagementSoftware - Intel® Node Manager, IPMI2.0, NMI, SuperDoctor® 5, Watchdog
Power Configurations - ACPI Power Management
- Power-on mode for AC power recovery
PC Health MonitoringVoltage - +1.8V, +12V, +3.3V, +5V, +5V standby, 3.3V standby, 5+1 Phase-switching voltage regulator, Memory Voltages, Monitors for CPU Cores, VBAT
FAN - 8x 4-pin fan headers (up to 8 fans), Pulse Width Modulated (PWM) fan connectors, Status monitoring for speed control
Temperature - Monitoring for CPU and chassis environment, CPU thermal trip support, Thermal Control for 8 Fan Connectors, Thermal Monitor 2 (TM2) support, PECI, Support to monitor Supermicro AOC temperatures from IPMI or SD 5
LED - CPU / System Overheat LED, UID/Remote UID, Memory DIMM ECC error LEDs
Other Features - 4x 8-pin GPU power connectors, Chassis intrusion detection, Chassis intrusion header, RoHS, SDDC
Operating EnvironmentOperating Temperature Range - 10°C - 35°C (50°F - 95°F)
Non-Operating Temperature Range - -40°C - 70°C (-40°F - 158°F)
Operating Relative Humidity Range - 8% - 90% (non-condensing)
Non-Operating Relative Humidity Range - 5% - 95% (non-condensing)
