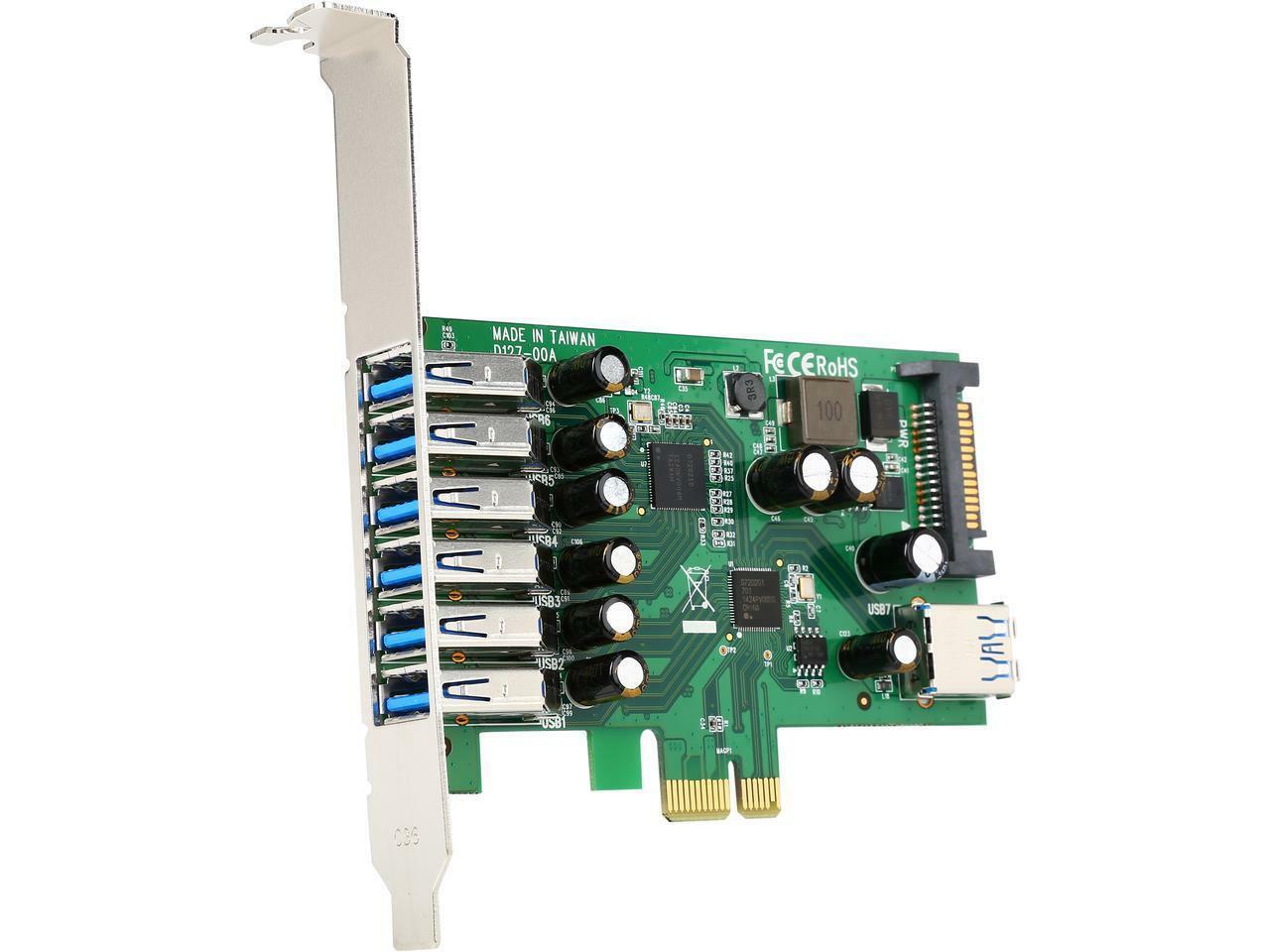

StarTech.com PEXUSB3S7 7 Port PCI Express USB 3.0 Card - Standard & class="grpFeatures">

Greater port count. Greater scalability.More ports mean you can add USB devices as you need. This robust USB 3.0 add-on card gives you seven USB 3.0 ports – six external and one internal – so you can plug in your tablets, smartphones, external hard drives, CD/DVD drives, printer and other devices at the same time. With so many extra ports, you can leave your devices plugged in, so they’re ready to use when you need. It’s also economical – by being able to connect so many devices, you save the cost of extra hubs or cards. The internal USB 3.0 port lets you connect a USB device inside your computer for added convenience and security.

Effective USB 3.0 performance enhanced by UASPThis high-performance SuperSpeed USB 3.0 add-on card supports data transfer rates up to 5 Gbps and is enhanced with UASP support, which can perform - 70% faster read speed and 40% faster write speed over traditional USB 3.0, when paired with a UASP-enabled enclosure.

Easy driver installationYou'll be up and running in no time. The card offers native operating system support for Windows 8.1 and 8. It’s also backward compatible with USB 2.0 and 1.x devices to help you get the most out of your existing peripherals.

Unique dual-profile designThis versatile USB 3.0 add-on card features a dual-profile design with a stacked port layout. The innovative port configuration allows a high number of external ports in a compact design, allowing it to fit both low-profile and full desktop computer systems. A bracket is included for installation into low-profile computers.

SATA Power ConnectorThis card draws electricity via SATA power connector and delivers up to 900mA per port for high-power USB devices.

PCI-Express x1 InterfaceThis card features PCIe 2.0 x1 interface for 5 Gbps theoretical bandwidth. The x1 connector can fit into PCIe slots of various lanes, including x1, x4, x8 and x16. The maximum throughput of this card is limited by the bus interface. If used with PCI Express Gen 1.0 enabled computers, the max throughput is 2.5 Gbps. If used with PCI Express Gen 2.0 enabled computers, the max throughput is 5 Gbps.

Learn more about STARTECH Express to USB CardExternal USB Ports6x USB PortsInternal USB Ports1x USB PortExternal Ports6 - USB 3.0 A (9 pin; SuperSpeed) FemaleInternal Ports1 - SATA Power (15 pin) Plug1 - USB 3.0 A (9 pin; SuperSpeed) FemaleStandardUSB 3.0Data Transfer RateUp to 5.0 GbpsOperating Systems SupportedWindows® 8 / 8.1 (32/64bit), 7 (32/64), Vista (32/64), XP (32/64) Windows Server® 2012, 2008 R2 Linux 2.6.31 and up (Tested up to 3.5)SpecificationsBus Type: PCI ExpressCard TypeStandard: Profile (LP bracket incl.)Chipset ID: Renesas / NEC - µPD720201 & µPD720210Industry Standards: USB 3.0 Specification Rev. 1.0PCI Express Base Specification Rev. 2.0Intel xHCI Specification Rev. 1.0Interface: USB 3.0Port Style: Integrated on CardPorts: 7Maximum Cable Length: 9.8 ft [3 m]Maximum Data Transfer Rate: 5 GbpsMTBF: 1,920,042 HoursType and Rate: USB 3.0 - 5 Gbit/sUASP Support: YesFeaturesFeaturesGet the scalability you need by adding 7 USB 3.0 ports with SATA power to your computerPCIe USB 3.0 Adapter CardStandard and Low-ProfileUASP Support1 Internal and 6 External PortsNative OS Support in Windows 8.1 and 8 and Linux kernel 2.6.31 or later for easy driver installationUnique dual-profile designUSB 3 Controller backward compatible with USB 2.0 & 1.x devicesDimensions & WeightDimensions4.70" x 0.60" x 4.10"Weight0.16 lb.PackagingPackage Contents1 - 7 Port PCI Express USB 3.0 Card1 - Low-Profile Bracket1 - Driver CD1 - Instruction ManualShippingEnjoy fast and reliable shipping when you buy your products from Newegg. Our ordering and shipping services are among the best in the industry due to short processing times and a variety of shipping methods. Your orders are packaged at one of the many local warehouses across the country, minimizing delivery times and ensuring you get your purchases as soon as possible.PaymentsNewegg has partnered with PayPal to offer you the very best in payment services. PayPal allows you to buy with confidence, knowing your payments are processed quickly and securely with state-of-the-art encryption technology.ReturnReturns are subject to restocking fees of 15% - 30% of the purchase price and return shipping fees. For products that are eligible for return for replacement, the return shipping labels are free for returns for replacement of the same item within the applicable return policy period. Newegg does NOT charge for restocking fees or return shipping labels for returns of defective products, or if you received the wrong product, the product did not match what was shown on the Site, or we made some other shipping error, provided the item is returned within its return policy period, and in accordance with the Return Policy.Frooition www.frooition.com | No-js Template | design, store design, shop design, template design, listing design (ver:froo_no_js)This listing is currently undergoing maintenance, we apologise for any inconvenience caused.
