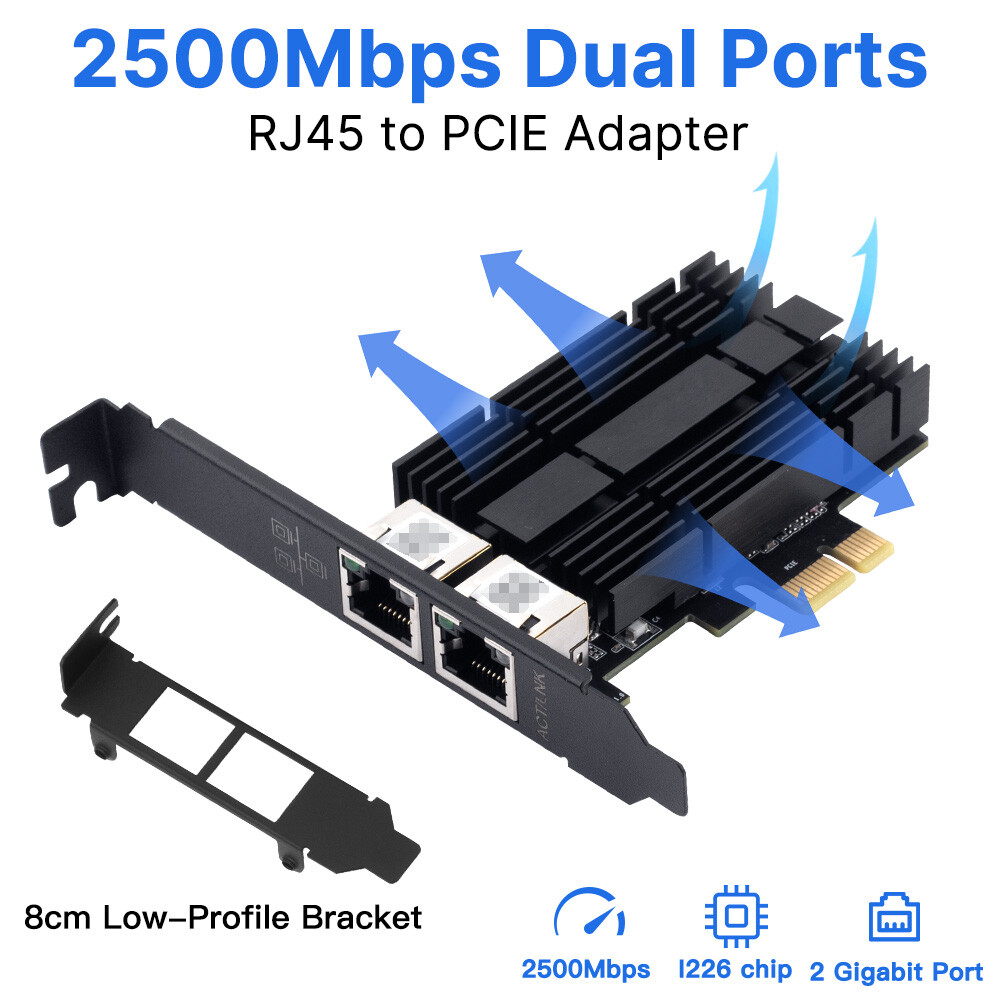

RJ45 Dual Port 2.5GBase-T Intel I226 Card PCIe Network Adapter for Gaming Office

Price: US $40.99

Dual Port 2.5G PCIe Network Adapter Card Intel I226 Chipset for Gaming Office

Features:

This PCI Express controller with Base-T copper networking interface, provides compact, single-port integrated multi-gigabit (up to 2.5G) - MDI (Copper) standard IEEE 802.3 Ethernet interface for 2500BASE-T, 1000BASE-T, 100BASE-TX, 10BASE-TE connections (IEEE 802.3, 802.3u, 802.3ab). The Intel Ethernet Controller I226 is designed for use mobile, desktop, workstation, value-server, or industrial designs that have critical space constraints. The I226 can also support Intel vPro technology on specific Intel platforms and chipsets. The Intel Ethernet Controller I226 also supports the latest time sensitive networking (TSN) features, along with best in class power management and Operating System Support.

The Intel Ethernet Connection I226 includes advanced interrupt-handling features to reduce CPU overhead. Other performance-enhancing features include offloading TCP/UDP (for both IPv4 and IPv6) checksum calculations and performing TCP segmentation. Additionally, I226 builds on prior controller solutions to add Time Sensitive Networking (TSN) features including IEEE 802.1Qbu, 802.3br, 802.1Qbv, 802.1AS-REV, 802.1p/Q, and 802.1Qav on select operating systems. These features support advanced time critical, and synchronized applications prevalent in audio/video, embedded, and industrial applications. Advanced interrupt-handling features manage multiple interrupts simultaneously. Combining interrupt-handling features with intelligent filtering, ordering, and directing packets to specific queues and cores, enables loadbalancing network traffic flows to improve throughput in multi-core platforms. Other performance-enhancing features include IPv4 and IPv6 checksum offload, TCP/UDP checksum offload, extended Tx descriptors for more offload capabilities, up to 256 KB TCP segmentation (TSO v2), 40 KB packet buffer size, and 9.5 KB Jumbo Frame Port number：2* RJ45

Standard：IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.3bz

Data Transfer Rate: 100/1000/2500Mbps

Network media：10Base-T,cat3 or above UTP,1000Base-Tx,cat5 or above UTP

BUS: PCI Express (PCIe x1); LEDs: ACT/Link

Auto MDIX：YES

Full Duplex Support：YES

Support OS：Windows 10(32/64), Windows 11(32/64), Linux, Server, MacOS

Packing list:

1x PCIE 2.5G LAN Card

1x Low profile Bracket

1x Screwdriver

Screw
