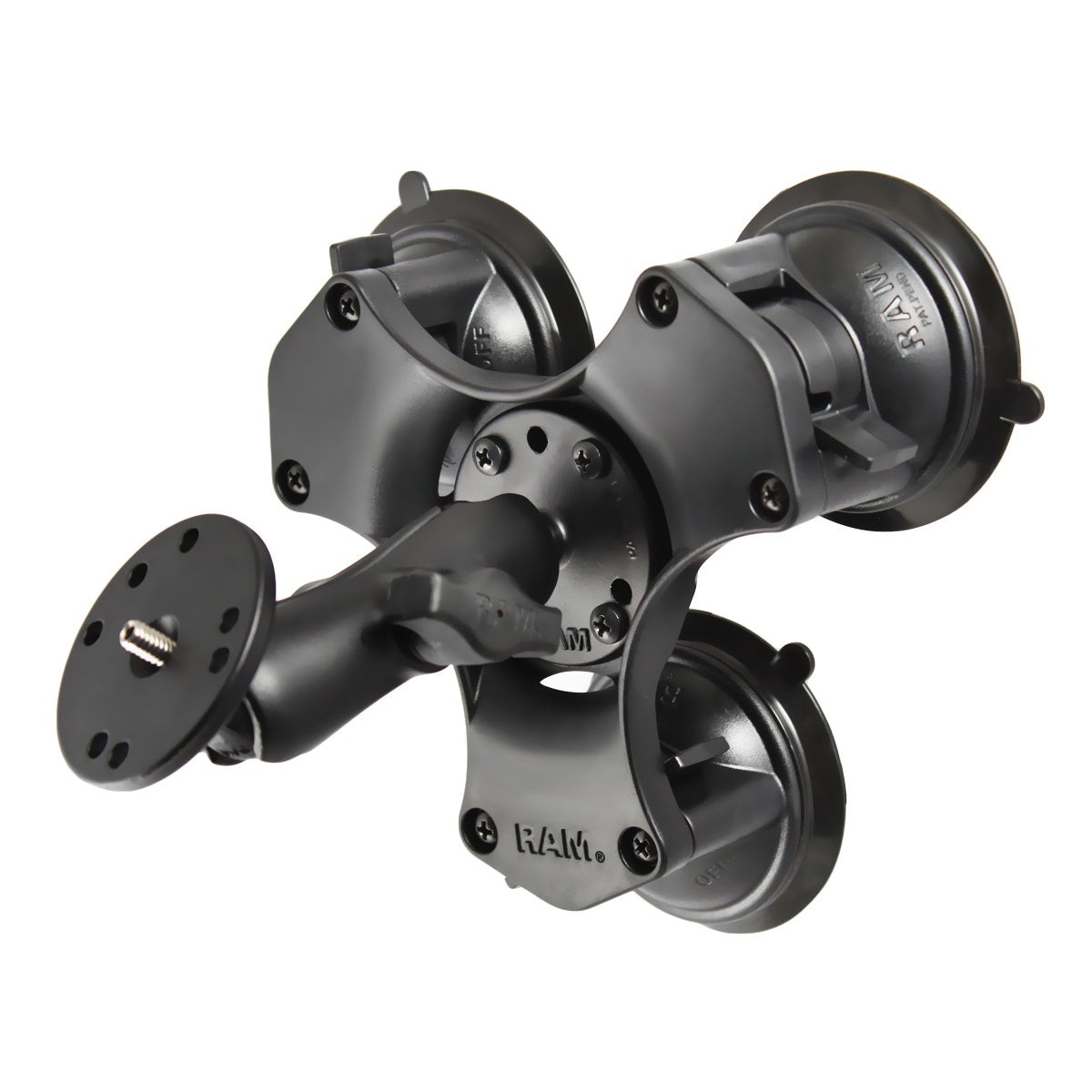

RAM Twist-Lock Triple Suction Mount with RAM Products!

The RAP-B-365-224-202AU consists of a triple 3.3 INCHES diameter suction cup twist lock base, double socket arm and round base adapter that contains a 1/4 INCHES -20 male camera thread. The suction cup base is designed to have a strong hold on glass and non-porous plastic surfaces, including RAM adhesive disks. The camera base contains a 1 INCHES rubber ball that is connected to a 2.5 INCHES diameter round base. Also, included is a 1/4 INCHES -20 threaded steel stud, centered, the round base provides support and stability for cameras that rest on top of it. The male 1/4 INCHES -20 threaded steel stud will connect to any standard female thread found on camcorders and digital cameras. The mount is designed with a RAM 1 INCHES diameter patented rubber ball and socket system that has adjustment points at both ends of the double socket arm; this allowing for almost infinite adjustment and perfect viewing angles.hardware included Assembly Hardwaresuction size (3) 3.3 INCHES Diameter Bases, Total Width 7.95 INCHES socket to socket length 3 INCHES hole pattern 4-Hole AMPS: 1.181 INCHES x 1.496 INCHES 3-Hole 120-Degree: 1.812 INCHES Diameterthread pitch 1/4 INCHES -20 x .25 INCHES plate size 2.5 INCHES Diameterball size B Size (1 INCHES )weight capacity Standard Use: 2 lbsHeavy-Duty Use: 1 lbmaterials Marine-grade aluminumHigh strength compositepackaging type Poly BagWeight 1.26 lbhardware included
Assembly Hardwaresuction size
(3) 3.3 INCHES Diameter Bases, Total Width 7.95 INCHES socket to socket length
3 INCHES hole pattern
4-Hole AMPS: 1.181 INCHES x 1.496 INCHES 3-Hole 120-Degree: 1.812 INCHES Diameterthread pitch
1/4 INCHES -20 x .25 INCHES plate size
2.5 INCHES Diameterball size
B Size (1 INCHES )weight capacity
Standard Use: 2 lbsHeavy-Duty Use: 1 lbmaterials
Marine-grade aluminumHigh strength compositepackaging type
Poly BagWeight
1.26 lb
