RAM Tele-Pole with 12" & 18" Poles, Double RAM Products!

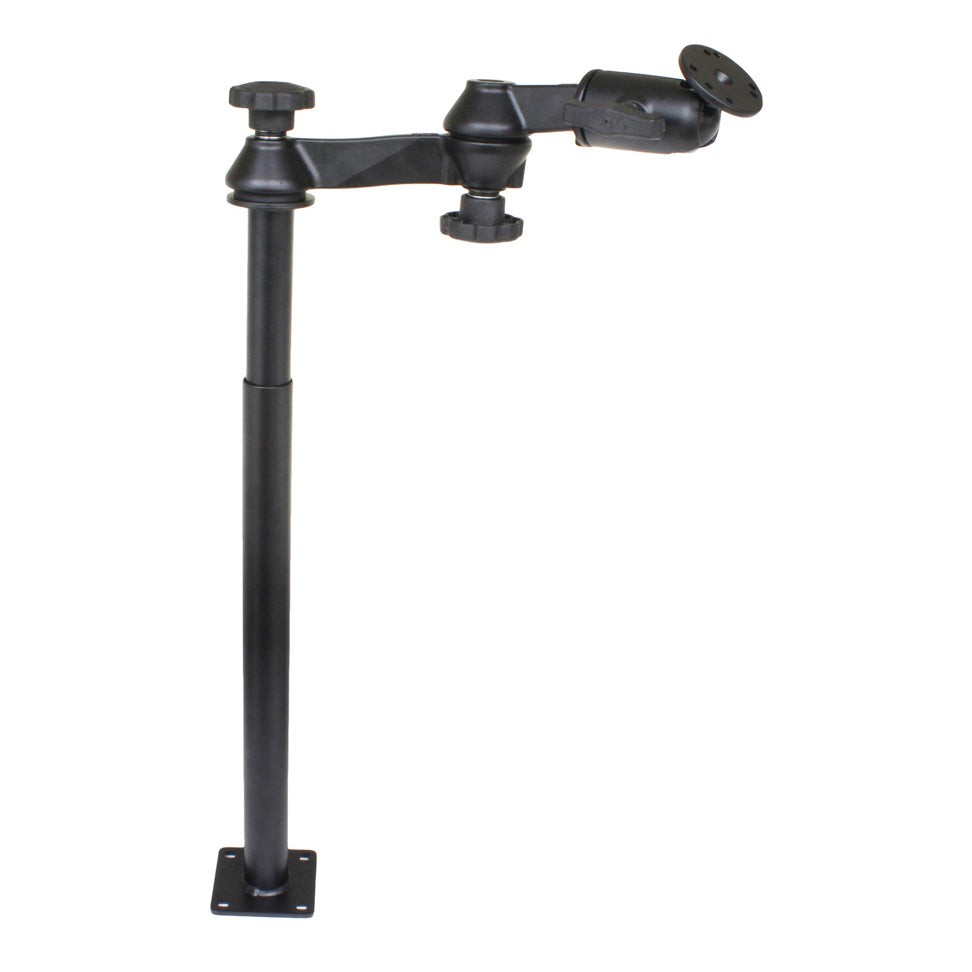

The RAM-VP-SW1-1218 consists of a 18 INCHES lower female Tele-Pole, 12 INCHES upper male Tele-Pole, double swing arm and 2.5 INCHES round base that contains the universal AMPs hole pattern. The lower female Tele-Pole will attach to all RAM vehicles bases that do not contain a welded female Tele-Pole. The height of the Tele-Poles, combined, can easily be adjusted by turning the knob at the top of the post. Once the knob has been tightened, the Tele-Pole becomes a rigid support for connecting devices or cradles. The double swing arm allows you to twist and tilt the viewing angle of your connected electronic device, when mounted on your RAM Vehicle Mount. The rotating swivel arm gives you even more viewing positions for your mounted electronic device while holding everything firmly in place. The length of the double swing arm is 12 INCHES .hardware included Assembly Hardware(4) 5/16 INCHES -18 x 1 INCHES Carriage Bolts(4) 5/16 INCHES -18 Hex Nuts(4) 5/16 INCHES Flat Washers(4) 5/16 INCHES Split Lock Washers(4) Rubber Capsproduct dimensions Minimum Height: 22.3 INCHES Maximum Height: 34.3 INCHES hole pattern Tele-Pole: 2.625 INCHES x 2.625 INCHES Round Plate: 4-Hole AMPS: 1.181 INCHES x 1.496 INCHES & 3-Hole 120-Degree: 1.812 INCHES Diameterplate size Round Plate: 2.5 INCHES DiameterLower Pole: 3.5 INCHES x 3.5 INCHES ball size C Size (1.5 INCHES )materials Powder coated steelMarine-grade aluminumpackaging type Poly BagWeight 7.4 lbhardware included
Assembly Hardware(4) 5/16 INCHES -18 x 1 INCHES Carriage Bolts(4) 5/16 INCHES -18 Hex Nuts(4) 5/16 INCHES Flat Washers(4) 5/16 INCHES Split Lock Washers(4) Rubber Capsproduct dimensions
Minimum Height: 22.3 INCHES Maximum Height: 34.3 INCHES hole pattern
Tele-Pole: 2.625 INCHES x 2.625 INCHES Round Plate: 4-Hole AMPS: 1.181 INCHES x 1.496 INCHES & 3-Hole 120-Degree: 1.812 INCHES Diameterplate size
Round Plate: 2.5 INCHES DiameterLower Pole: 3.5 INCHES x 3.5 INCHES ball size
C Size (1.5 INCHES )materials
Powder coated steelMarine-grade aluminumpackaging type
Poly BagWeight
7.4 lb
