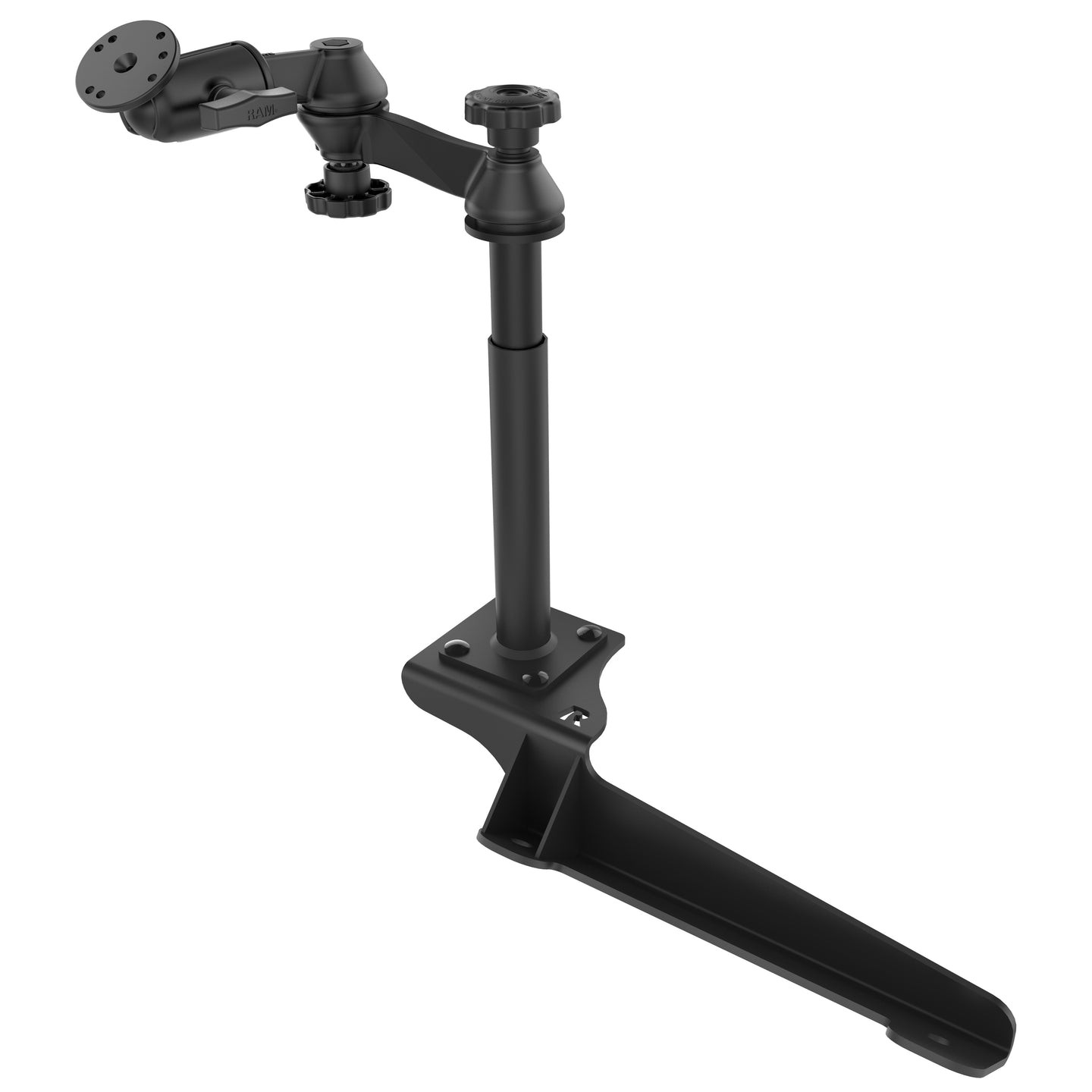

RAM No-Drill Mount for '99-16 Ford F-250 - RAM Products!

This RAM No-Drill mounting system installs quickly and easily into a range of Ford F-Series and Ford Excursion vehicles using the existing hardware of the passenger side seat rails. This configuration provides a telescoping feature that ranges from 12" to 18". Dual swing arms provide articulation and 12" of reach for passenger and driver access to the mounted device. The round ball base attached to the end of the swing arm supports a variety of tablet and laptop holders, while RAM rubber ball and socket technology provides additional adjustability as well as shock and vibration isolation.hardware included Assembly Hardware(2) M12-1.75 x 100mm Hex Bolts(2) M12-1.75 x 60mm Hex Bolts(2) M12 Lock Washers(2) 3/8 INCHES Stand-Offs(2) 1 INCHES Stand-Offshole pattern 4-Hole AMPS: 1.181 INCHES x 1.496 INCHES 3-Hole 120-Degree: 1.812 INCHES DiameterSeat Bolt Distance: 11.5 INCHES center to centerplate size 2.5 INCHES Diameterball size C Size (1.5 INCHES )weight capacity Standard Use: 4 lbsHeavy-Duty Use: 3 lbsmaterials Powder coated steelMarine grade-aluminumpackaging type BoxWeight 15.0 lbhardware included
Assembly Hardware(2) M12-1.75 x 100mm Hex Bolts(2) M12-1.75 x 60mm Hex Bolts(2) M12 Lock Washers(2) 3/8 INCHES Stand-Offs(2) 1 INCHES Stand-Offshole pattern
4-Hole AMPS: 1.181 INCHES x 1.496 INCHES 3-Hole 120-Degree: 1.812 INCHES DiameterSeat Bolt Distance: 11.5 INCHES center to centerplate size
2.5 INCHES Diameterball size
C Size (1.5 INCHES )weight capacity
Standard Use: 4 lbsHeavy-Duty Use: 3 lbsmaterials
Powder coated steelMarine grade-aluminumpackaging type
BoxWeight
15.0 lb
