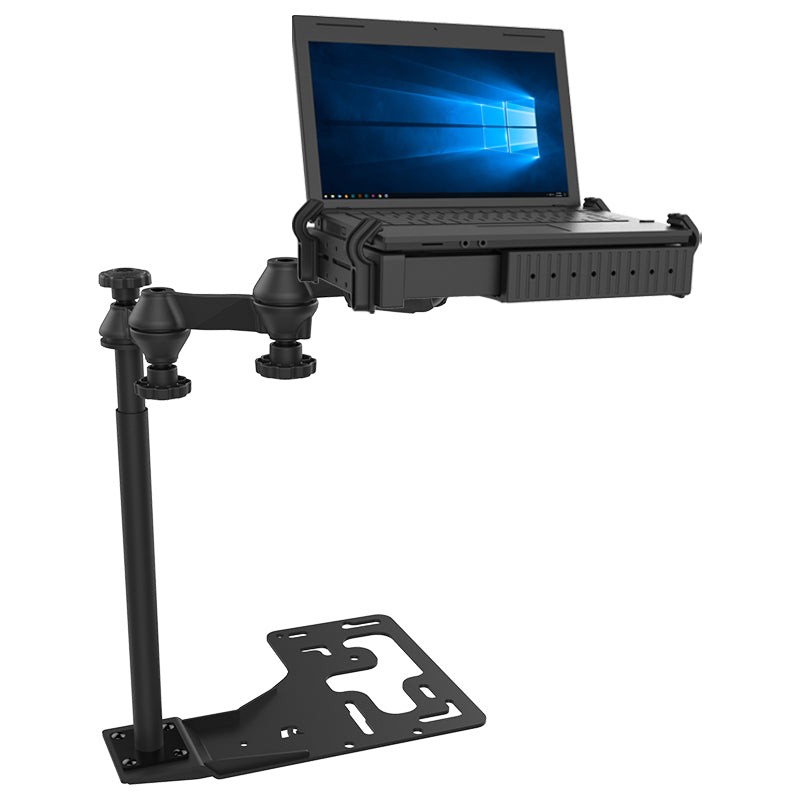

RAM No-Drill Universal Laptop Mount for RAM Products!

This No-Drill Laptop Stand System installs quickly and easily into the specified vehicles using the existing hardware of the passenger side seat rails. This configuration provides a telescoping feature that ranges from 12 to 18 inches. The triple swing arm provides articulation and 18 inches of reach for passenger and driver access to the mounted device. Patented rubber ball and socket joint provides additional adjustment as well as shock and vibration isolation. The RAM Tough-Tray is spring loaded to accommodate 10 INCHES to 16 INCHES wide laptops. The tray features four adjustable retaining arms with rubber grip feature. These arms can be moved both vertically and horizontally. This allows for a custom fit for varying thicknesses of laptops and the freedom of not blocking ports or drives. A screen support and USB light are also available to accessorize the tray. Hole patterns on perimeter of tray facilitate the mounting of additional RAM systems to support GPS or other electronics.hardware included Assembly Hardwaretray dimensions Width Range: 10 INCHES - 16 INCHES Side Arm Clamp Height: .5 INCHES - 1.75 INCHES Tray Depth: 10 INCHES Tray Thickness: 2.125 INCHES hole pattern See Drawingball size C Size (1.5 INCHES )materials Powder coated steelMarine grade-aluminumHigh strength compositepackaging type BoxWeight 24.0 lb Additional Information If the heater box is under the seat, the installer may need to drill holes in the base to accommodate vehicle mounting holes or studs. Also, the heater box may cause the system to sit higher than normal. Pole may be cut down by installer to lower kit. This will not void the warranty. May not work with swivel style seats for big rigs.hardware included
Assembly Hardwaretray dimensions
Width Range: 10 INCHES - 16 INCHES Side Arm Clamp Height: .5 INCHES - 1.75 INCHES Tray Depth: 10 INCHES Tray Thickness: 2.125 INCHES hole pattern
See Drawingball size
C Size (1.5 INCHES )materials
Powder coated steelMarine grade-aluminumHigh strength compositepackaging type
BoxWeight
24.0 lb
