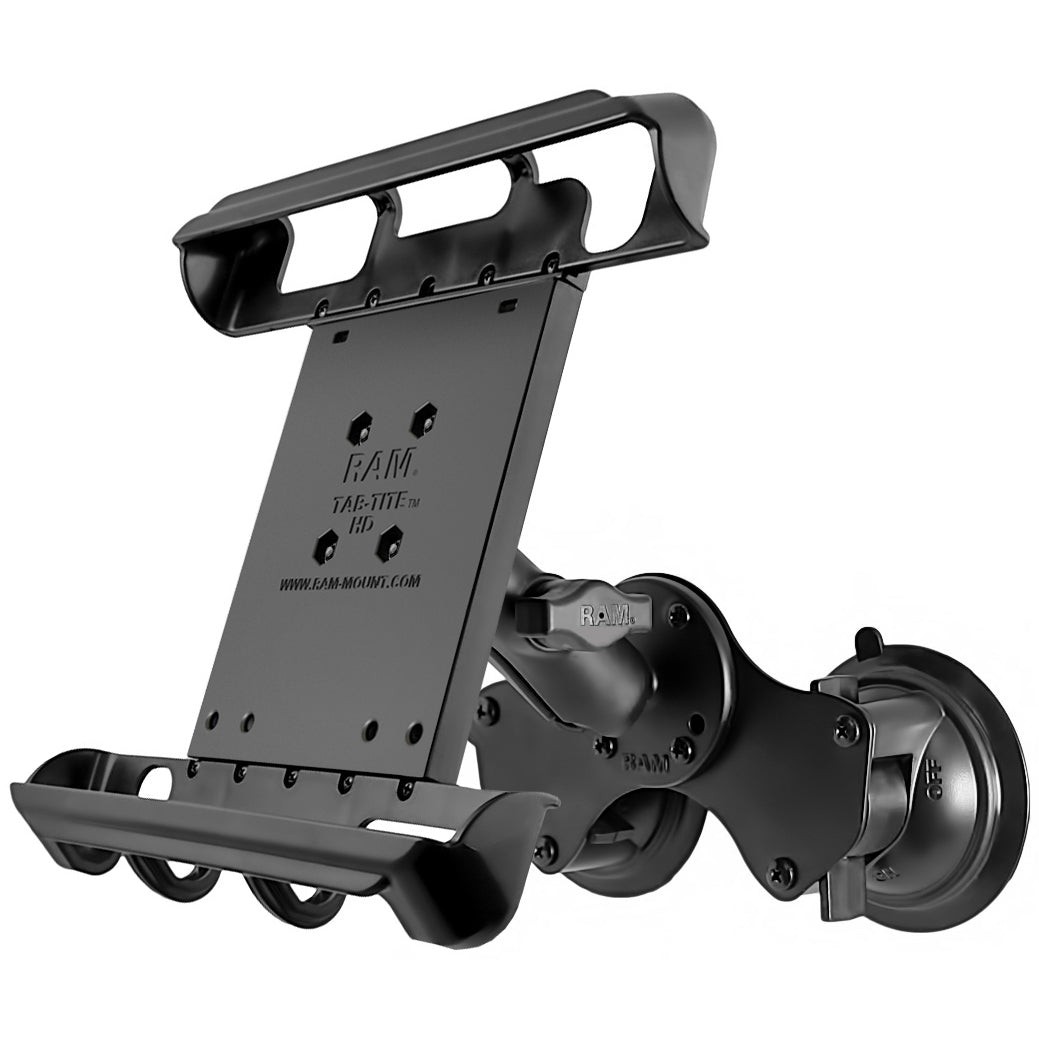

RAM Tab-Tite Dual Suction Mount for iPad Pro ...

RAM-B-189-TAB8U

Genuine RAM Products!

The RAM-B-189-TAB8U consists of a double 3.3 INCHES twist lock suction cup base, double socket arm, round base adapter and Tab-Tite universal clamping cradle. The suction cup base is designed to have a strong hold on glass and non-porous plastic surfaces. The mount is designed with a RAM 1 INCHES diameter patented rubber ball and socket system that has adjustment points at both ends of the double socket arm; this allowing for almost infinite adjustment and perfect viewing angles. The included Tab-Tite cradle includes a spring loaded back plate and custom support cups for 10 INCHES screen tablets WITH heavy duty cases. The spring loaded design makes it easy to load and unload your tablet, along with keeping it secure while on the go. Interchangeable cup ends are designed to optimize the functionality of your tablet, allowing access to audio jacks, usb, power, and other ports, your tablet can be used just as it was intended. The Tab-Tite cradle is compatible with any tablet that will fit the dimensions listed below. It is important to verify the dimensions of your tablet when determining the overall size.hardware included Assembly Hardwareholder dimensions Height Range: 9 INCHES - 11.5 INCHES Width Range: 6.38 INCHES - 8.31 INCHES Depth Range: .13 INCHES - 1.12 INCHES suction size (2) 3.3 INCHES Diameter Bases, Total Width 7.95 INCHES socket to socket length 3 INCHES ball size B Size (1 INCHES )weight capacity Standard Use: 2 lbsHeavy-Duty Use: 1 lbmaterials Marine-grade aluminumHigh strength compositepackaging type Poly BagWeight 1.9 lbhardware included
Assembly Hardwareholder dimensions
Height Range: 9 INCHES - 11.5 INCHES Width Range: 6.38 INCHES - 8.31 INCHES Depth Range: .13 INCHES - 1.12 INCHES suction size
(2) 3.3 INCHES Diameter Bases, Total Width 7.95 INCHES socket to socket length
3 INCHES ball size
B Size (1 INCHES )weight capacity
Standard Use: 2 lbsHeavy-Duty Use: 1 lbmaterials
Marine-grade aluminumHigh strength compositepackaging type
Poly BagWeight
1.9 lb
