Description:

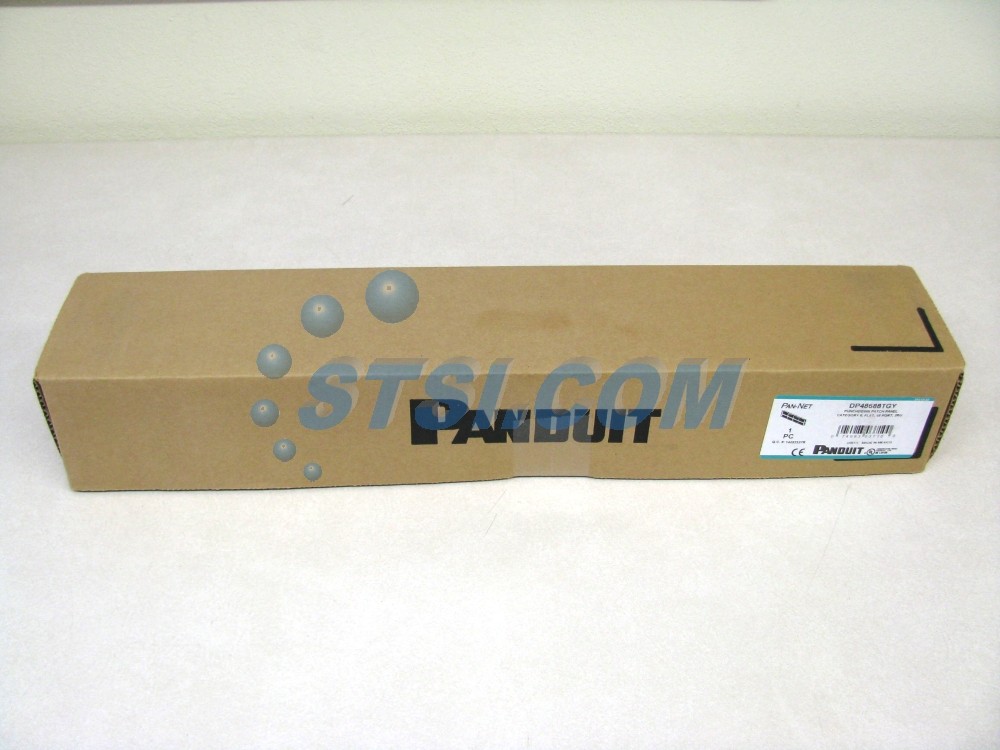

Punchdown Patch Panel, Cat 6, Flat, 48 Port, 2RU
Features:

• Exceed ANSI/TIA-568-C.2 Category 6 and ISO 11801 2nd Edition Class E standards
• Meet requirements of IEEE 802.3af and IEEE 802.3at for PoE applications
• Each port is 100% tested to ensure NEXT and RL performance and is individually serialized to support traceability
• Utilize 110 punchdown termination on back panel and includes retention cap for each port
• Each port contains a universal label that is color-coded for T568A and T568B wiring schemes
• Angled versions allow for higher density applications by easily routing the patch cords to each side of the panel eliminating the need for horizontal cable management
• Terminate 4-pair, 22 – 26 AWG, 100 ohm, solid or stranded twisted pair cable
• Mount to standard EIA 19" rack or 23" racks with optional extender bracket
• Write-on areas for port and panel identification
• Can be clearly identified with labels and icons
• Optional label kits (DPLK24 and DPLK48) contain adhesive label holder and labels for easy port and panel Number DP48688TGY
• RoHS Compliancy Status Compliant
• Note DP48688TGY replaces DP48688TG
• Part Description 48-port, Category 6, patch panel with 48 RJ45, 8-position, 8-wire ports.
• Product Type Punchdown Patch Panel
• Color Black
• Depth (In.) 1.17
• Depth (mm) 29.6
• Height (In.) 3.47
• Height (mm) 88.1
• Width (In.) 19.0
• Width (mm) 482.6
• CE Compliant No
• No. of Rack Spaces 2
• Patch Panel Style Flat
• Performance Level category 6
• Pricing Description Punchdown Patch Panel, Cat 6, Flat, 48 Port, 2RU
