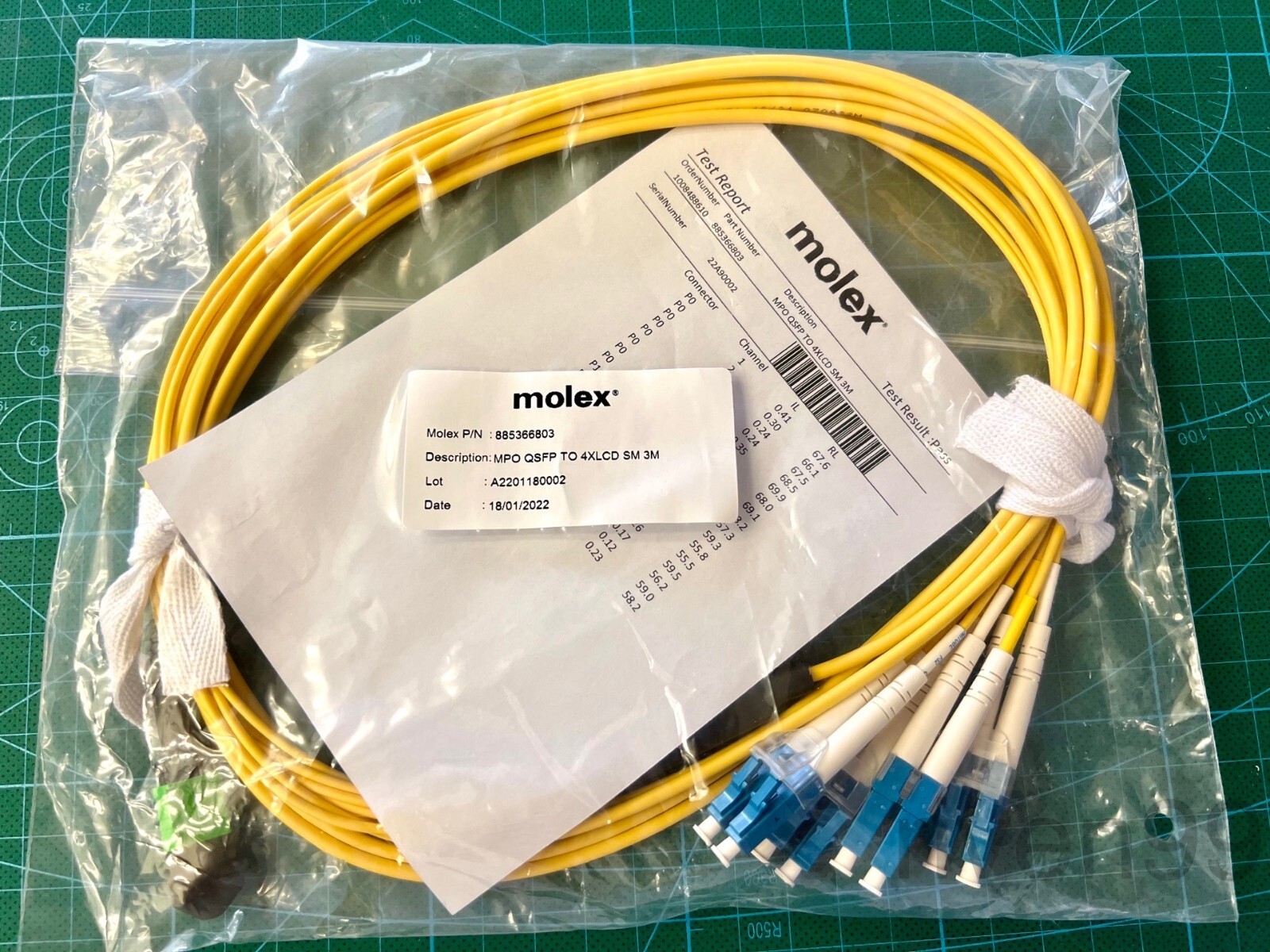

MOLEX QSFP MPO/MTP 8F to 4x LC Fiber Optic Breakout Cable, Singlemode OS2 Yellow
When you click on links to various merchants on this site and make a purchase, this can result in this site earning a commission. Affiliate programs and affiliations include, but are not limited to, the eBay Partner Network.
MOLEX QSFP MPO/MTP 8F to 4x LC Fiber Optic Breakout Cable, Singlemode OS2 Yellow
Price: US $34.99
Up for sale are New bulk pack GenuineMolexQSFP MPO-to-4LC Fiber Optic Breakout Cables
  • Contains 8 Singlemode Corning SMF-28 OS29/125μm Fibers for 1310/1550nm
  • 3.0mm yellow jacket, OFNP (Plenum rated)
  • Polarity: Standard (tx's connected to rx's)
  • Select Length above:
    • 3m (9.8ft),p/n:88536-6803
    • 5m (16.4ft),p/n:88536-6805
  • Each cable is labeled with part number and serial number; includes insertion loss test data sheet with matching serial number
  • Each of the 8 LC fibers is individually numbered/labeled
  • Each of the 8 LC fibers has a 2.0mm OD jacket and is about 0.5m (1.6ft) long from the breakout section of the cable
  • MPO-8 connector contain 8 fibers (4 tx, 4 rx) in a standard pinless MPO-12 layout, with the center 4 positions unused
  • Connector end A: MPO/APC Female
  • Connector end B: 4xLC/UPC Duplex Male
  • See Molex site for complete specs and dimensions
