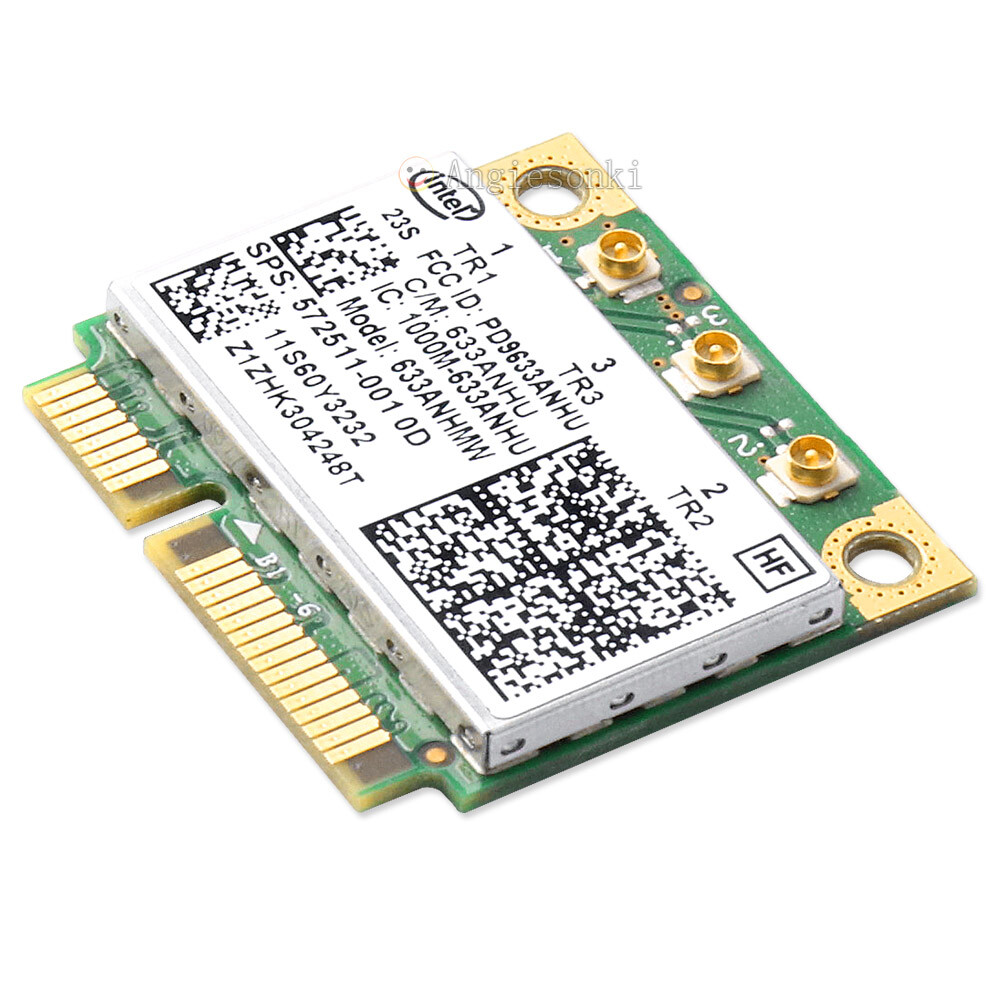

Intel Centrino Ultimate-N 6300 572511-001 HP 8440P 2540P WiFi Adapter WLAN Card

this item only works on IBM/Lenovo/HP laptops equipped with a PCI-Express Half-Mini Card slot

but NOT on other Laptops

Brand:

intel

Condition

100% Genuine

Components Included:

intel 6300 X 1 PCS
screw X2pcs Specifications:

Lenovo Thinkpad T430,T430I,T430S,T430SI
Lenovo Thinkpad X230 X230i

Intel Centrino Ultimate-N 6300 mini pci-e wireless Card

Support IEEE 802.11a/b/g/n/Ultimate N

Model No: 633ANHMW

Support 802.11B 11Mbps/up to 54 Mbps at 5 GHz (802.11a)/2.4 GHz (802.11g)

and 802.11n at 300Mbps, up to 450Mbps bandwide

Half Height Mini PCI-E (Mini pci express) Interface

Overview

The Intel® Centrino® Ultimate-N 6300 and Intel® Centrino® Advanced-N 6200 are a family of IEEE 802.11a/b/g/n wireless adapters that operate in both the 2.4 GHz and 5.0 GHz spectra. These adapters are available in a PCIe Half Mini Card* form factor and deliver up to 450 Mbps of bandwidth¹; in addition to providing a host of features that enhance today’s mobile lifestyle.

For business users, the Intel Centrino Ultimate-N 6300 and Intel Centrino Advanced-N 6200 products enable remote wireless manageability, resulting in lower administration costs combined with a predictable and reliable wireless connection.

General Information Manufacturer Intel Corporation Manufacturer Part Number 633ANHMW Manufacturer Website Address www-intel-com Product Model 633ANHMW Product Name Intel® Centrino® Ultimate-N 6300 Product Type Wi-Fi Adapter Product Condition USED Technical Information Wi-Fi Standard IEEE 802.11n (draft), IEEE 802.11a/b/g ISM Band Yes UNII Band Yes Number of Antennas 3 Antenna Type Diversity Antenna Wireless Transmission Speed 450 Mbps Interfaces/Ports Host Interface Mini PCI Express Physical Characteristics Dimensions 1.06" Height x 1.18" Width x 0.13" Thickness Weight 0.14 oz

Driver (no driver cd included，or contact us)
