You can install it anywhere you want,Place as you like,Equipped with IP67 waterproof enclosure, 15kV ESD protection and 6kV lightning protection, it can work normally in rain/snow/wind/thunder and other bad weather.
The next generation of WiFi, complies with IEEE 802.11 ac/a/b/g/n standards. Supports dual-band maximum speed up to 5GHz 1201Mbps and 2.4GHz 574Mbps, avoiding wireless interference & congestion and offering lightning-fast Internet speed.you can enjoy HD videos, smooth gaming, etc. even outdoors.
- Multiple Modes, Flexible Use
Supports Mesh agent, AP,Mesh Router, Repeater, AP+Repeater and other modes to meet your different needs and apply to more outdoor use scenarios.Note: If you need to use special characters, please search for 573HX1 in Firmware on the Wavlink website to upgrade the latest firmware.
The 4x8dBi omnidirectional antennas and two built-in high-power amplifiers provide extreme WiFi coverage and penetration. Also supports Mesh technology, one-click brings more device connections, greatly expanding the WiFi coverage, and eliminating every network dead zone.
- Fiberglass tube high-gain antennas
The 4x8dBi omnidirectional antennas and two built-in high-power amplifiers provide extreme WiFi coverage and penetration.Higher antenna gain strengthens Wi-Fi signal and expands wider coverage in the open air, stability technology automatically avoids channel conflicts , meet outdoor long range coverage wireless network requirement,
- Optional PoE Power Supply
Supports 802.3AF/AT active PoE and passive PoE, transferring data and charging the product with a single Ethernet cable, so you can install the product outdoors where power outlet is not available. Note: The PoE converter is not waterproof. Please use CAT5E or above cable and the length should not exceed 100m/328ft.WAVLINK Professional Outdoor Router/AP/Repeater, Enjoy Super-Speed WiFi6 Anytime & Anywhere

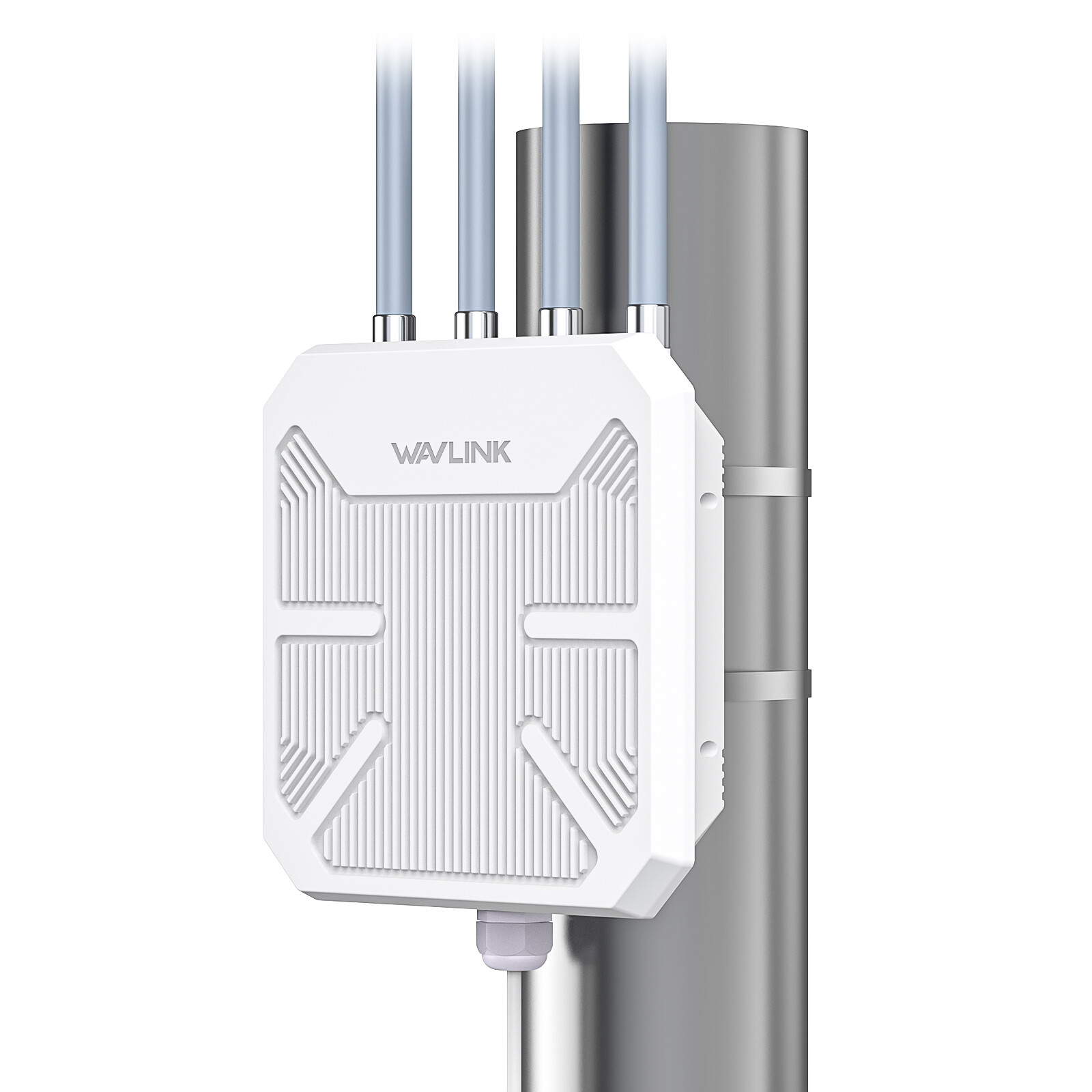

WN573HX1 is a high-performance outdoor router/AP/repeater specially designed for outdoor use: Robust weatherproof case and 15kV ESD protection ensure continuous operation and stable connection under harsh outdoor conditions; The 4 x 8dBi omnidirectional fiberglass tube antennas feature high strength and high precision, a long service life and excellent wireless performance; Supports IEEE 802.11 ax/ac/a/n/g/b standards, and provides blazing-fast Internet speeds of 1800Mbps (2.4GHz 574Mbps+5GHz 1201Mbps); Supports MU-MIMO and Beamforming technology, allowing up to 128 devices to be connected simultaneously in a wider range.Specification
- Model: WL-WN573HX1
- Product Size(without antennas): 24x24x7cm/9.4x9.4x2.8in
- PoE Converter Size: 4.4x3.7x2.2cm/1.7x1.5x0.9in
- Length: Antennas - 40cm/15.7in; Ethernet Cable - 100cm/39.4in; Power Adapter Cable - 130cm/51.2in
- Product Weight(without antennas): 1109g/39.1oz
- Standard: IEEE 802.11 ax/ac/a/n/g/b
- Frequency Band/Speed: 2.4GHz(574Mbps)+5GHz(1201Mbps)
- Wireless Security: WPA2-PSK, WPA2/WPA3-MIX
- Antennas: 4 x 8dBi Omnidirectional Antennas
- PAIR/RESET LED: Blue
- PoE Converter Status LED: Green
Features
- Robust weatherproof case, IP67 waterproof rating and built-in lightning arrester (15kV ESD) withstands harsh outdoor conditions.
- Supports 802.3 AT/AF active PoE and passive PoE to supply power.
- Fiberlass tube antennas for high precision, corrosion resistance, long life, strong wind resistance.
- 4x8dBi detachable omnidirectional external antennas provide excellent wireless performance.
- Supports dual band(2.4G 573Mbps+5G 1201Mbps) with combined speeds of up to 1800Mbps.
- Mesh technology makes you enjoy seamless roaming throughout the house with a single network name and password.
- Complies with IEEE 802.11 ax/ac/a/n/g/b standards.
- Supports Mesh/AP/Router/Repeater/AP+Repeater modes.
- Encryption type:WPA2-PSK, WPA3/WPA2-MIX.
Warm Tips
①The PoE converter is not waterproof, please install it indoors.
②Please make sure your Ethernet cable is CAT5E or above certified and shorter than 100m/328ft.
③Please install the product 2-3 meters above the ground for better performance.
④Under the mesh mode, WN573HX1 ONLY supports interconnection with WN531AX2, WN583AX1 and WN573HX1.
In the Box
1 x Wi-Fi6 Outdoor Mesh Router/AP/Repeater
4 x Omni Antennas
4 x Cable Ties
1 x Ethernet Cable Connectors
1 x Quick Installation
1 x Wrench
2 x Silicone Pads
Several Screws
Passive PoE(Optional):
1 x 54V Power Adapter
1 x PoE Converter
1 x Ethernet Cable
How to install antennas and Ethernet cable?
①Pass the RJ45 cable through the waterproof connector cover.
②Screw the waterproof seal into the waterproof connector bracket.
③Pass the RJ45 cable through the waterproof connector bracket, and screw the waterproof connector bracket into the cover.
④Put the waterproof sealing ring on the waterproof connector bracket.
⑤Connect the RJ45 cable to WAN/LAN port.
⑥Screw the connecting cable into the 2.4G and 5G antenna connector and screw up the connector.
Note: The PoE converter is not waterproof, please install it indoors. Please make sure your Ethernet cable is CAT5E or above certified and shorter than 100m/328ft.
