Power Over Ethernet Kit for 4x Raspberry Pi
(250M 4ports PoE Switch+ Micro USB PoE Splitter)
for Raspberry Pi B/B+/2/3
SupportEXTEND mode, max Network Cable length to250 meters
NOTE. WhenEXTEND mode enable, the Max bandwidth for thePower Link (PoE) port 1-4network port will bereduced to 10Mbps for each one.
(The up-link is not affected, it will always working at 100Mbps max speed)
PoESwitch Specification:
ALL Port:Standard 10/100Mbps Ethernet port. Support 10Mbps Ethernet and 100Mbps Fast Ethernet, can operate in full-duplex or half-duplex mode,must work with4 pairs UTP Cat5/5e/6 cable。Power LinkPort1-4:any supported unsolicited power on pairs 45-78 pins compliant Powered Devices (PDs)
Power LEDLED ON: power on. LED OUT: power off GreenLight LINK/ACTLED ON Indicates the port is connected to a network device and has been startedLED OFF Indicates that this port is not connected to a network device or has not been started
Standard
IEEE 802.3 10BASE-T Ethernet
IEEE 802.3u 100BASE-TX Fast Ethernet
IEEE 802.3x Full-Duplex flow control
Protocol
CSMA/CD Ethernet
Data TransferRate
Ethernet: 10Mbps (Half Duplex)20Mbps (Full Duplex)
Fast Ethernet: 100Mbps (Half Duplex)200Mbps (Full Duplex)
IC Chips
IC Plus IP178G
Network Media(Cable)
10Base-T(EXTEND mode): UTP category 5e, 6 cable (maximum 250m) EIA/TIA-568 100Ω STP (maximum 250m)
100Base-TX:UTP category 5, 5e cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m)
PoE Power on RJ45
Power +: pin 4 & pin 5 ; Power -: pin 7 & pin 8
DC Output: 52V, Per port Max 1A or 50Watt, 4 POE ports Total Max. 75Watt
Number of Ports
5x 10/100Mbps Auto-Negotiation RJ45 ports with4 PoE enabled (port-1~ port-4)
Power Input
AC Input: 110V ~ 240VAC, 50Hz ~ 60Hz.
DC OutPut: 52V/1.85A
Power Consumption
3.2Watts (max. no PD connected)
According to the actual power consumption of equipment
Temperature
Operation Temperature:0 ~40℃(32 ~104℉)
Storage Temperature: -40 ~70℃(-40 ~158℉)
Humidity
Storage Humidity 5%~90% non-condensing, OperatingHumidity 10%~90% non-condensing
Product Dimensions
132mm W x 66mm D x 32mm H
RAM Register Capacity
64K bytes per device
MAC Address List
1K entries per device
Frame Forward Rate
10Mbps Ethernet: 14880pps/Port
100Mbps Ethernet: 14880pps/Port
Notice:
Yellow LED(power) will be light up when micro USB connects to the device.
Green LED(data) never light in any circumstances,two reasons are below,
1.The splitter does not have the function to monitor the data of the network cable.
2.due to the cost problem,the network interface component is from the universal components which own two LEDs on the market.
PoE Splitter Specification:
Compliant with IEEE802.3af
Isolation: 2.5kV
Power Input: DC44~57V
Power Output: DC5V 2.4A
Data&Power INPUT Port: from RJ45 female (Compliant with IEEE802.3af/at PoE)
Data Output Port: RJ45 Male
Power Output Port: Micro USB Power Plug
Data Transfer Rate: 10/100Mbps
Devices will be detected before poe input
Power Pin:support both 1/2(+/-),3/6(-/+) or 4/5(+),7/8(-)
Body size: 80 x 27x 22 mm
DC cable length：165mm
RJ45 Modular Plug cable length：155mm
Weight : 55g
Item Included:

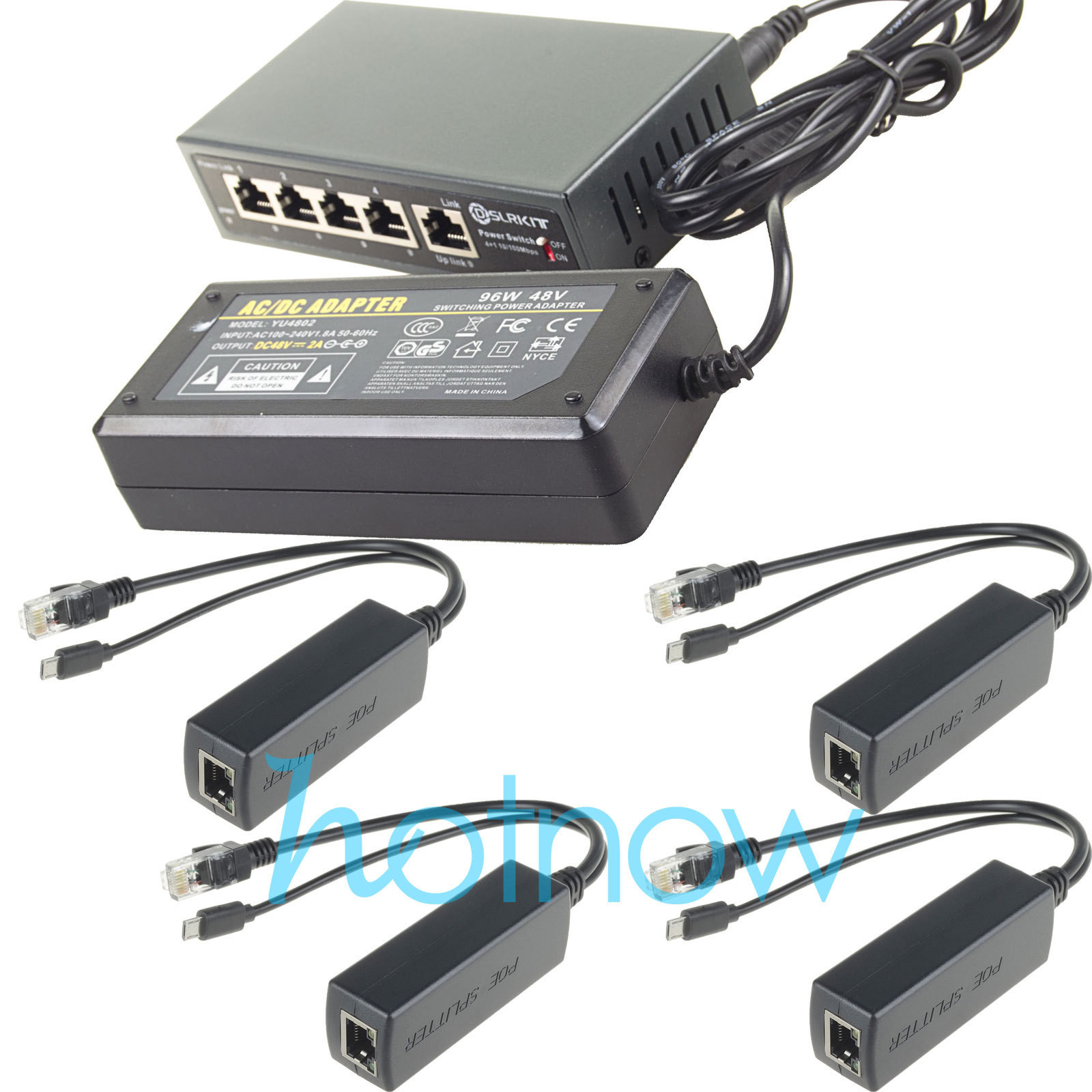

Output5V 2.4AActive PoE Splitter(Micro USB Power Plug) x4
75Watt 5pots 4PoEPassivePoE switch(DSLRKIT MID4P1U-E250) x1
AC power plug is US or EU type,if you need other type (AU or UK),Please leave a message.
