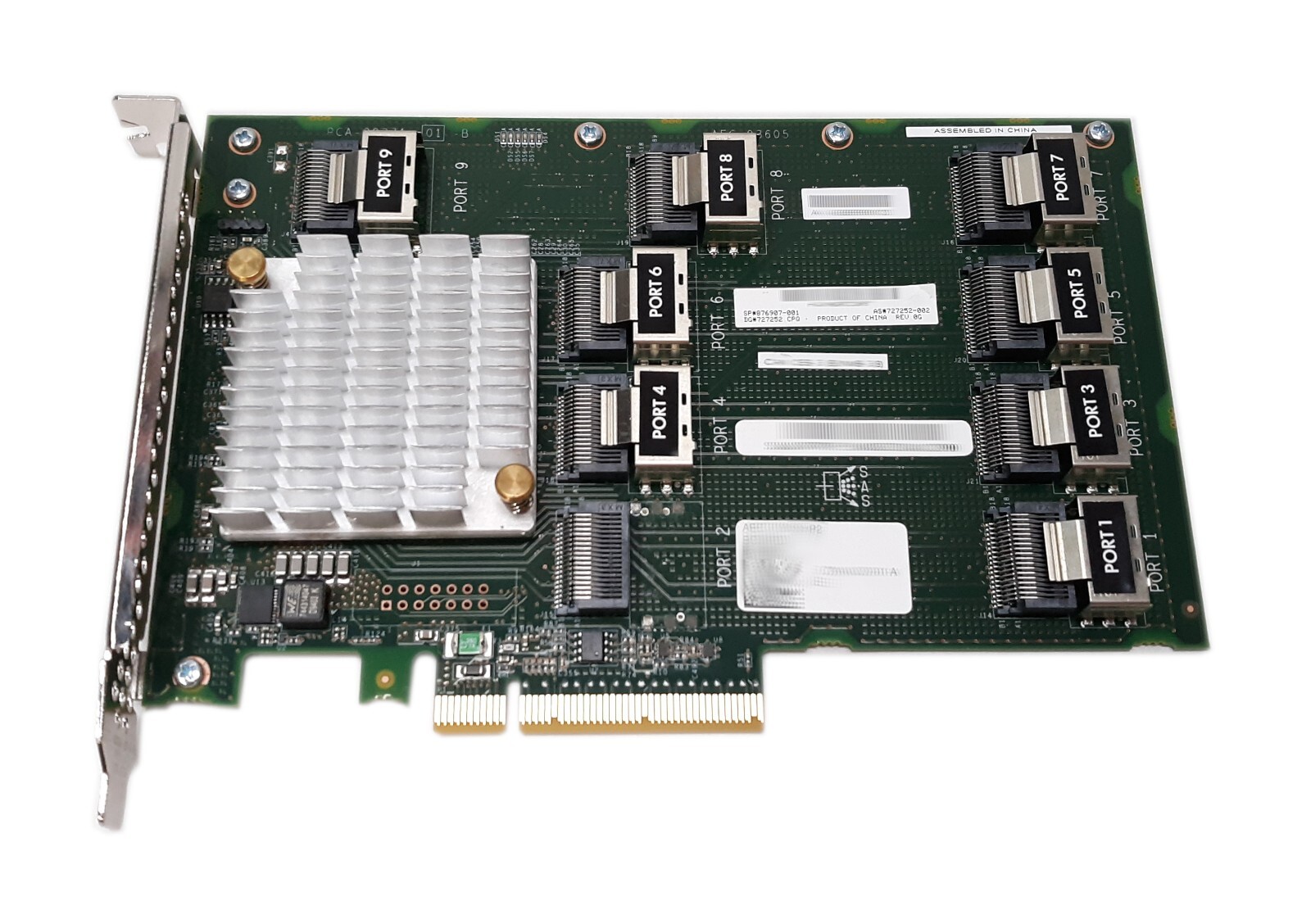

HPE DL38X Gen10 12GB SAS Expander Card 727252-002 876907-001 870549-B21
Condition: Refurbished
SKU: 101000338513
Specification:
Assy - 727252-002
Spare - 876907-001
PN - 870549-B21
The HPE 12G SAS Expander Card provides internal storage expansion within the HPE ProLiant Gen9 and Gen10 Server by allowing support for up to 28 drives when connected to a Gen10 or Gen9 supported Smart Array or Smart HBA controller. This full height card supports 12Gb/s SAS connectivity and is ideal for users who want to add additional internal storage to maximize their storage capacity.
Features
Storage interface (SAS/SATA):
28 physical links across 9 x4 internal ports
12Gb/s SAS, 6Gb/s SATA technology
Mix-and-match SAS and SATA hard drives to the same controller
PCI Express 3.0 x8 link
Supports up to 28 internal drive bays (dependent on the server)
Up to 64 logical drives when connected to a Smart Array Controller
Ports
2 x4 Mini-SAS ports for attachment to Smart Array controllers or Smart HBAs
7 x4 Mini-SAS ports for attachment to server drive backplanes
Supports up to 28 drives (dependent on server)
Performance
12Gb/s SAS (1200 MB/s theoretical bandwidth per SAS lane)
6Gb/s SATA (600 MB/s theoretical bandwidth per SAS lane)
PCI Express 3.0 x8 link width
Dimensions
6.6 x 4.4 x 0.6 in (16.8 x 11.13 x 1.5 cm) PCIe full-height, half-length card
Compatible
HPE ProLiant DL380 Gen9
HPE ProLiant DL560 Gen9
HPE ProLiant ML350 Gen9
HPE ProLiant DL380 Gen10
HPE ProLiant DL560 Gen10
NOTE: 12G SAS Expander not supported in ML350 Gen10 LFF models.
