FEATURES
Guaranteed 750W of Continuous Power from Antec
100% Modular－Improves airflow and reduces clutter
80 PLUS® GOLD certified－Up to 92% efficient, to reduce your electricity bill
PhaseWave™ Design－A server-class full-bridge LLC design with a synchronous rectification based on a DC-DC topology
Antec Quality 10-year warranty and lifetime global 24/7 support
120mm FDB Silence－Whisper-quiet high-quality fluid-dynamic bearing fan with long lifetime
Zero RPM Manager－An advanced low voltage fan control with fan-off mode at low loads for absolute silence
99%+12V - Output for maximum CPU & GPU support
CircuitShield™－Full suite of industrial grade protections: OCP, OVP, UVP, SCP, OPP, OTP, SIP, NLO
100% Japanese capacitors achieve unprecedented tight voltage regulation & low ripple & noise to maximize your system’s performance
28(18+10) pin MBU socket - For possible future MBU connectors
ATX12V 2.4－Engineered according to the newest PSU guideline and compatible with the latest CPU generation
Compact size 140mm depth power supply is the best choice for compact ATX chassis
SPECIFICATIONS

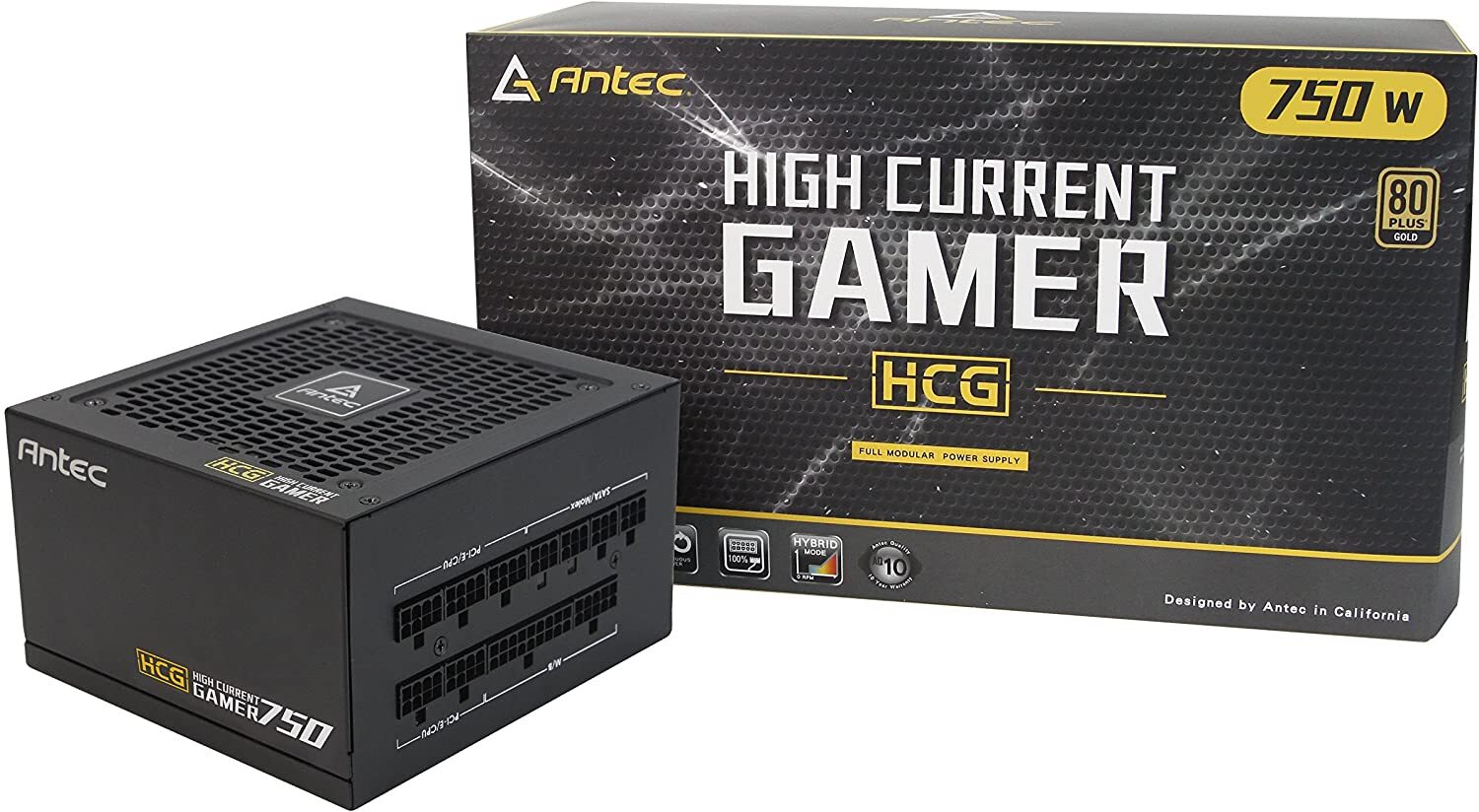

ModelHCG750 Gold
TypeATX 12V 2.4
ModularFully Modular
Dimension (W x L x H)140(L)*150(W)*86(H) mm
Warranty10 years
Input Voltage100-240 VAC ±10%
Input Current10A-5A
Input Frequency Range50Hz-60Hz
PFCActive PFC (>0.9 typical)
Power Good Signal100-500ms
Efficiency92% Typically
Output Capacity750W
Operation Temperature0~40°C
RegulatorycTUVus/TUV/CB [IEC62368 Compliant] /RCM/CE/EAC/CCC/BSMI/FCC
Fan120mm FDB Fan
Certifications80 Plus Gold
Connector1 x MB 24(20+4) Pin
2 x 8(4+4) Pin EPS 12V
4 x 8(6+2) Pin PCI-E
8 x SATA
3 x Molex
1 x FDD
Net Weight2.11Kg
Gross Weight3.42Kg
